RBTIC is an industrial robot manufacturer and supplier in China, offering industrial robots for a range of automation applications, including arc welding, spot welding, palletizing, pick and place, and CNC machine tending. The product range includes articulated robots, SCARA robots, and Delta robots for different payload, reach, and motion requirements.

Robots can be supplied as individual units or integrated into application-specific workstations with tooling, fixtures, material handling equipment, control systems, and safety devices. Model selection depends on the workpiece, required payload, operating reach, positioning requirements, and the equipment to be integrated.


  • 6-axis Welding Robot
    Model: BRTIRUS1510A Six-Axis Robot
    Repeatability: ±0.05 mm
    Loading Ability: 10 kg
    Arm Length: 1587 mm
    Customization: Robot welding workstations can be tailored to your...
  • Welding Industrial Robot
    Model: BRTIRWD1506A Six-Axis Robot
    Repeatability: ±0.05 mm
    Loading Ability: 6 kg
    Arm Length: 1647 mm
    Weldable Materials: Carbon Steel, Stainless Steel, Aluminum...
  • Robotic Arm for Welding
    Model: BRTIRUS2110A Six-Axis Robot
    Repeatability: ±0.05 mm
    Loading Ability: 10 kg
    Arm Length: 2131mm
    MOQ: 1 unit
  • Automatic Welding Robot
    Model: BRTIRUS1820A Six-Axis Robot
    Repeatability: ±0.05 mm
    Loading Ability: 20 kg
    Arm Length: 1895 mm
    1-unit MOQ — start with a single system and scale into bulk orders and...

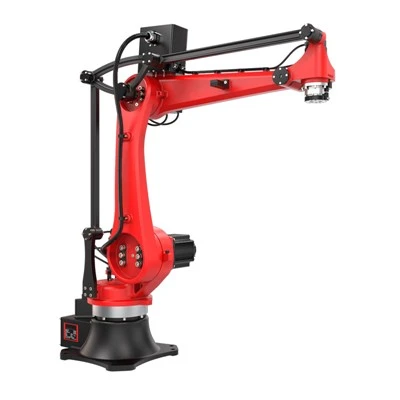

  • Industrial Palletizing Robot
    Model: BRTIRPZ1508A
    Repeatability: ±0.05 mm
    Loading Ability: 8 kg
    Arm Length: 1413 mm
  • Palletizing Robot Arm
    Model: BRTIRUS2550A 6-axis palletizing robot arm
    Repeatability: ±0.1mm
    Payload: 50kg
    Reach: 2563mm
  • Robotic Case Palletizer
    Model: BRTIRUS3511A 6-axis robot
    Repeatability: ±0.2mm
    Payload: 100kg
    Reach: 3503mm
    MOQ: 1 unit
  • Box Palletizing Robot
    Model: BRTIRPZ2465A
    Repeatability: ±0.15mm
    Payload: 65kg
    Reach: 2334mm
    Application: Palletizing, loading and unloading, material handling, depalletizing, depackaging and...

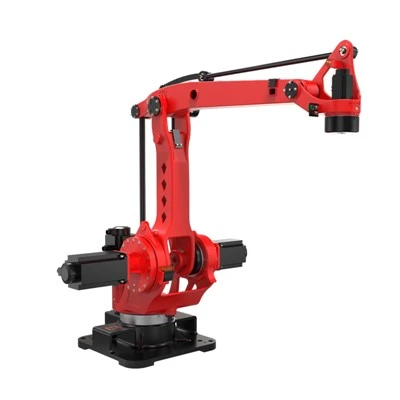

  • Automatic Robotic Palletizer
    Model: BRTIRPZ2480A
    Repeatability: ±0.2mm
    Payload: 80kg
    Reach: 2412mm
  • Automated Palletizing Robot
    Model: BRTIRUS2520A
    Repeatability: ±0.2 mm
    Loading Ability: 200 kg
    Arm Length: 2637 mm
  • Column Palletizer
    Model: BRTIRPZ1865A
    Repeatability: ±0.15 mm
    Loading Ability: 65 kg
    Arm Length: 2000 mm
    Maximum Palletizing Height: 1800 mm
  • Column Palletizing Robot
    Model: BRTIRPZ2080A
    Repeatability: ±0.15 mm
    Loading Ability: 80 kg
    Arm Length: 2000 mm
    Maximum Palletizing Height: 1700 mm
First 123 Last


1. Industrial Robot Models and Technical Specifications

The following industrial robot models cover different industrial robot applications. Payload, working radius, and repeat positioning accuracy are key parameters for initial selection. The final choice should also account for the weight of the end-of-arm tooling, workpiece dimensions, mounting position, and required motion path.

Application Model Robot Type / Axes Payload Working Radius Repeat Positioning Accuracy
Welding BRTIRUS1510A 6-axis articulated 10 kg 1,587 mm ±0.05 mm
Welding BRTIRWD1506A Not confirmed 6 kg 1,647 mm ±0.05 mm
Welding BRTIRUS2110A Not confirmed 10 kg 2,131 mm ±0.05 mm
Welding BRTIRUS1820A Not confirmed 20 kg 1,895 mm ±0.05 mm
Palletizing BRTIRUS2550A 6-axis articulated 50 kg 2,563 mm ±0.1 mm
Palletizing BRTIRUS3511A 6-axis articulated 100 kg 3,503 mm ±0.2 mm
Palletizing BRTIRPZ2465A Not confirmed 65 kg 2,334 mm ±0.15 mm
Palletizing BRTIRPZ2480A Not confirmed 80 kg 2,412 mm ±0.2 mm
Palletizing BRTIRUS2520A Not confirmed 200 kg 2,637 mm ±0.2 mm
Pick and Place BRTIRUS0401A 4-axis articulated 1 kg 574 mm ±0.06 mm
Pick and Place BRTIRUS0805A 6-axis articulated 5 kg 990 mm ±0.05 mm
Pick and Place BRTIRUS2110A 6-axis articulated 10 kg 2,131 mm ±0.05 mm
Pick and Place BRTIRPL1003A Delta 3 kg 1,000 mm ±0.1 mm
CNC Machine Tending BRTIRUS0707A Not confirmed 7 kg 883 mm ±0.03 mm
CNC Machine Tending BRTIRUS0805A 6-axis articulated 5 kg 990 mm ±0.05 mm
CNC Machine Tending BRTIRUS1510A 6-axis articulated 10 kg 1,587 mm ±0.05 mm
CNC Machine Tending BRTIRUS1820A Not confirmed 20 kg 1,895 mm ±0.05 mm
CNC Machine Tending BRTIRUS2030A Not confirmed 30 kg 2,068 mm ±0.08 mm
CNC Machine Tending BRTIRUS2110A 6-axis articulated 10 kg 2,131 mm ±0.05 mm

Axis information is listed only where confirmed for the specific model. Please confirm the required model configuration and full technical data before ordering.

Model Selection Considerations

Payload: Calculate the combined weight of the workpiece, gripper, and other end-of-arm tooling. The rated robot payload is not the same as the workpiece weight.

Working radius: Check the robot's reach against the machine opening, fixture position, pickup point, and placement point.

Repeat positioning accuracy: Match the stated accuracy to the positioning requirements of the actual process.

Robot type and axes: Select the robot structure according to the required movement, working area, and application.

Installation and utilities: Confirm mounting conditions, power supply, controller requirements, and interface needs for the planned workstation.

For example, the BRTIRUS2550A has a rated payload of 50 kg. If a 10 kg gripper is used, the remaining payload available for the workpiece is no more than 40 kg, subject to the robot's load and center-of-gravity limits.

2. Industrial Robot Applications and Working Conditions

Welding Robots

Industrial welding robots can be configured for arc welding and spot welding applications. The BRTIRUS1510A is listed for both welding processes. Its application setup depends on the welding method, workpiece geometry, fixture arrangement, torch configuration, and required welding sequence.

A documented MIG welding application used four BRTIRUS1510A robots to weld 3 mm carbon steel components. The workstation included a dual-station positioner, two sets of fixtures, MIG welding equipment, an automatic torch-cleaning station, and PLC control. Each workpiece required four short weld seams.

For welding projects, the robot model and workstation should be selected according to the workpiece dimensions, welding access, torch and cable arrangement, fixture design, and production sequence.

Palletizing Robots

Industrial palletizing robots handle products such as cartons, large appliance cartons, consumer goods packaging, and industrial plastic products. Selection depends on the weight and dimensions of each load, stacking pattern, pickup and release positions, and required working reach.

For bag palletizing, the payload calculation must include the gripper. A documented application handled 25–30 kg PE resin bags using a 100 kg payload robot with a pneumatic bag gripper. The robot's rated payload should not be treated as the permissible workpiece weight without accounting for the end-of-arm tooling.

CNC Machine Tending Robots

CNC machine tending robots can load raw workpieces into machine tools, remove processed parts, and transfer components to the next operation. A typical cycle includes picking up a blank, loading it into the CNC machine, unloading the finished part, and placing it at a designated transfer position.

The BRTIRUS0707A is listed for CNC loading and unloading applications. Its 7 kg payload, 883 mm working radius, and ±0.03 mm repeat positioning accuracy provide initial selection data. The final setup must be checked against the combined workpiece and gripper weight, machine access, fixture position, and loading sequence.

Automatic feeding of raw materials depends on the workstation configuration. Operators may still need to replenish blanks, perform maintenance, and handle occasional equipment interruptions.

Pick and Place Robots

Pick and place robots transfer components between conveyors, fixtures, assembly stations, and other work areas. The suitable robot type depends on payload, pickup frequency, movement distance, workpiece orientation, and positioning requirements.

Application examples include PET preform handling, seal assembly, conveyor transfer, and vision-guided picking. Where visual positioning compensation is required, the vision system and robot control sequence need to be configured for the actual workpiece and operating environment.

3. Industrial Robot Automation Configuration and Integration

An industrial robot workstation may require additional equipment to perform the complete process. Depending on the application, the integration scope can include:

End-of-arm tooling: Grippers and other tools for workpiece gripping, handling, and assembly.

Fixtures and positioning: Workpiece locating, clamping, assembly fixtures, and positioning tables.

Material handling: Conveyors, feeding equipment, part separation devices, and transfer mechanisms.

Positioners: Workpiece positioners for welding and other processes requiring controlled part orientation.

Machine and process interfaces: PLC control, I/O coordination, sensors, and signal exchange with peripheral equipment.

Vision systems: 2D or 3D machine vision for workpiece identification, location, and positioning compensation.

Safety equipment: Safety fences, light curtains, safety mats, and area monitoring according to the workstation design.

Communication interfaces: Ethernet, Modbus TCP, and RS485, subject to the selected controller and integration requirements.

The control and peripheral equipment are selected according to the project. PLC options identified for integration include Xinjie, Mitsubishi, and Inovance. The specific PLC, communication method, I/O arrangement, and safety configuration should be confirmed during technical review.

4. Custom Industrial Robot Solutions

For projects requiring more than a standalone robot, RBTIC can provide customized industrial robot solutions based on the workpiece, process, equipment layout, and production requirements.

The project scope may include:

  • Robot and end-of-arm tooling selection
  • Custom grippers and workpiece fixtures
  • Feeding, positioning, and transfer equipment
  • Conveyor and machine-tool integration
  • Vision system configuration
  • PLC programming and I/O coordination
  • Robot programming and motion setup
  • Safety equipment and protection-zone configuration
  • System integration, signal testing, and commissioning

The customization scope is defined according to the project requirements. Before quotation, buyers should provide workpiece drawings or samples, payload information, process descriptions, equipment layout, and expected production cycle where available.

5. Industrial Robot Manufacturing, Testing, and Project Delivery

RBTIC has a 12,000 m² manufacturing base and more than 10 years of automation experience. Its project experience covers more than 1,000 automation projects and service in over 40 countries and regions.

The company's project capabilities include robot manufacturing, mechanical engineering, electrical engineering, robot programming, and automation system integration.

For integrated automation projects, Factory Acceptance Testing (FAT) can be arranged according to the agreed project scope. Test items may include robot movement, I/O coordination, work cycles, cycle time, and fault response.

Installation, commissioning, Site Acceptance Testing (SAT), operator training, drawings, program backups, manuals, and acceptance records can be included where specified in the project agreement.

Standard robot orders are shipped according to stock availability. Customized automation projects generally require 30–60 days, depending on project scope and complexity. The applicable delivery schedule should be confirmed in the quotation.

6. Industrial Robot Warranty and Technical Support

Industrial robot products are covered by a 12-month warranty. Support may include remote technical assistance, troubleshooting, and program support. Replacement parts can be shipped from China when required.

On-site service is subject to the project agreement. The warranty scope, service arrangements, and spare-parts requirements should be confirmed before order placement.

7. Request a Quote from an Industrial Robot Supplier

To help identify a suitable industrial robot or automation solution, please provide the following information:

  • Application: Welding, palletizing, pick and place, CNC machine tending, or another process
  • Workpiece material, dimensions, and weight
  • Required payload, including gripper or end-of-arm tooling
  • Required working radius and positioning accuracy
  • Process description and expected working cycle
  • Existing machines, fixtures, conveyors, or peripheral equipment
  • Preferred robot model, if already selected
  • Whether you need a standalone robot or a complete automation workstation

With these details, the technical team can review the application, check model suitability, and define the required robot configuration and integration scope.
