Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of box palletizing robot in China. With abundant experience, we warmly welcome you to buy durable box palletizing robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Box Palletizing Robot

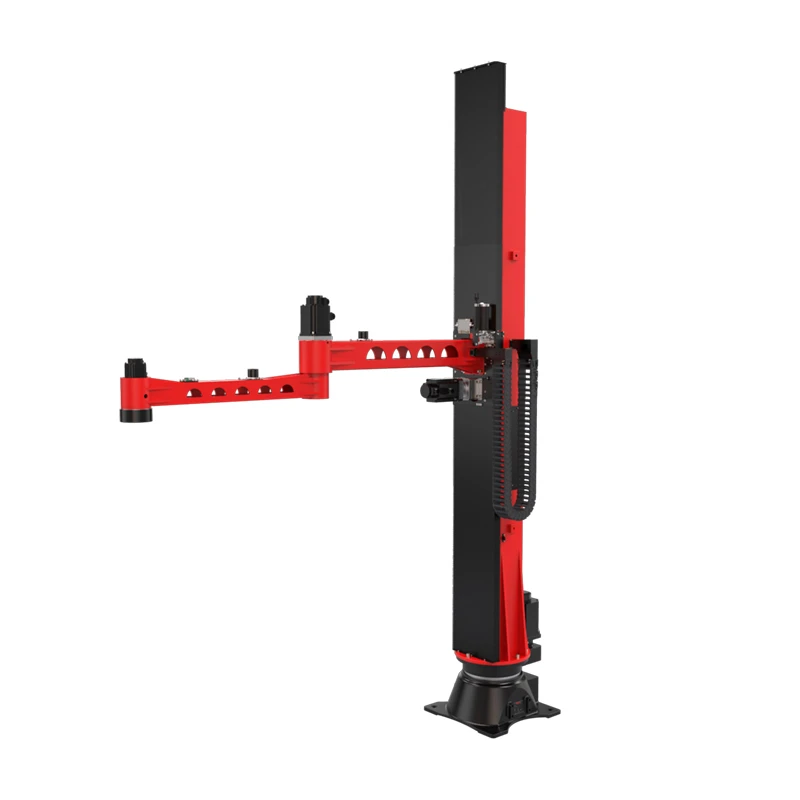

The box palletizing robot is designed to replace manual handling, assembly and loading/unloading operations. It reduces the risk of work-related injuries caused by repetitive labor or heavy object lifting, improves workplace safety, and extends automation to the end-of-line palletizing process to achieve efficient production.
Large Stroke Palletizing
This box palletizing robot has a vertical stroke of 2400mm and a maximum palletizing height of 2500mm. Its column structure combined with the large stroke design can cover higher layers and a wider range of palletizing operations. It easily handles the grabbing and placing of multi-specification boxes at different positions, meets the requirements of multi-layer high-position palletizing, and significantly improves warehouse space utilization.
High Precision & High Payload
Our box palletizing robot has a rated Payload of 65kg (including grippers), which can replace manual grabbing and placing of boxes and reduce reliance on human labor. With a repeatability of ±0.15mm, it ensures precise positioning for every pick and place, reduces palletizing misalignment, and delivers neat and standardized stacking.
Understanding Box Palletizing Robot Parameters
|
Model |
BRTIRPZ2465A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
2400mm |
660mm/s |
|
J2 |
±170° |
117°/s |
|
|
J3 |
±145° |
171°/s |
|
|
Wrist |
J4 |
±360° |
296°/s |
|
Vertical Stroke |
2400mm |
||
|
Maximum Palletizing Height |
2500mm |
||
|
Reach |
2334mm |
||
|
Payload |
65kg |
||
|
Repeatability |
±0.15mm |
||
|
Power Capacity |
7.82kVA |
||
|
Weight |
About 693.5kg |
||
|
Control System |
HC Control System |
||
Understanding Basic Dimensions of Box Palletizing Robot
Why Choose RBTIC
RBTIC is one of China's leading one-stop robotic palletizing solution providers, serving more than 40 countries worldwide. We continuously provide stable and reliable automated palletizing solutions for food, chemical, building materials, logistics, packaging and other industries. We not only offer CE-certified box palletizing robots, but also focus on the practical implementation of automation based on real on-site operating conditions.
Based on customers' product characteristics, on-site layout, production line cycle time and backend logistics integration requirements, RBTIC can quickly complete the design of one-stop non-standard customized solutions centered on box palletizing robots, helping customers build more stable and efficient automated production processes.
From robot selection, system integration to on-site commissioning, RBTIC is committed to helping customers reduce labor costs, improve palletizing efficiency, solve problems such as unstable manual stacking and recruitment difficulties, and realize stable and continuous automated palletizing production.
FAQ
Q1: What is the maximum palletizing height of this box palletizing robot?
This robot has a maximum palletizing height of 2400mm, which may vary slightly depending on the gripper and material specifications. It meets the requirements of high-position stacking and improves space utilization.
Q2: What is the power consumption of this robotic equipment?
Our box palletizing robot has a power capacity of approximately 7.82kVA with low energy consumption, making it suitable for long-term automated operation scenarios.
Q3: What is the repeatability of this box palletizing robot?
This box palletizing robot has a repeatability of ±0.15mm, which ensures stable and neat stacking effects and is suitable for warehousing and automated production lines.
