Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of 6-axis welding robot in China. With abundant experience, we warmly welcome you to buy durable 6-axis welding robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About 6-Axis Welding Robot
ROBOTIC TECHNOLOGY (GD) CO.,LTD (hereinafter referred to as "RBTIC") is one of China's most reliable one-stop robotic solution providers. We specialize in 6-axis welding robots and customized automated welding solutions tailored to meet real production needs, including installation and training services.
Welcome to select our CE-certified 6-axis welding robots. If you have any questions regarding quotations, robots, or welding solutions, please feel free to contact us by email at any time.

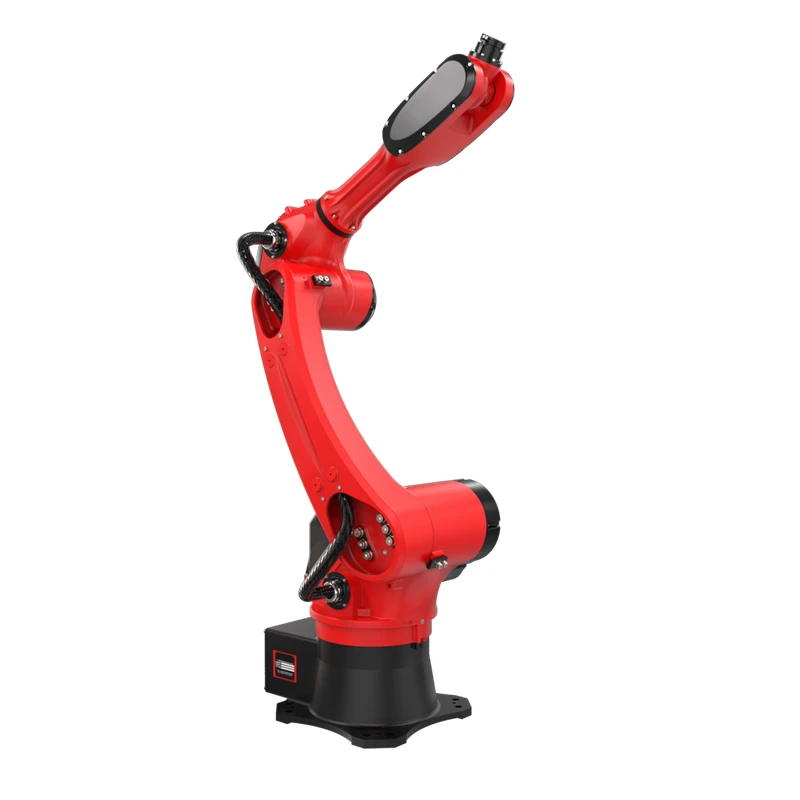

The 6-axis welding robot is specifically developed by RBTIC for complex automation applications requiring multiple degrees of freedom. It is capable of automatically performing welding processes, permanently joining metal workpieces through heating or pressure. Featuring a lightweight arm design and a compact mechanical structure, it offers a repeatability of ±0.05 mm and a reach of 1,587 mm. Even at high operating speeds, it can move flexibly within confined workspaces, making it ideal for high-mix, low-volume production environments.
Product Features
- The operation interface is intuitive, with functions such as point position recording.
- Compatible with MIG/MAG, TIG, spot welding and other welding processes.
- It replaces manual work and operates 24/7 non-stop without shift restrictions, effectively increasing production output.
Understanding 6-Axis Welding Robot Parameters
|
Model |
BRTIRUS1510A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±165° |
190°/s |
|
J2 |
-95°/+70° |
173°/s |
|
|
J3 |
-85°/+75° |
223°/s |
|
|
Wrist |
J4 |
±180° |
254°/s |
|
J5 |
±115° |
270°/s |
|
|
J6 |
±360° |
342°/s |
|
|
Arm Length |
1587mm |
||
|
Loading Ability |
10kg |
||
|
Repeatability |
±0.05mm |
||
|
Power Source |
5.06kVA |
||
|
Weight |
152kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP54,Dust-proof and water-proof |
||
Understanding Basic Dimensions Of 6-Axis Welding Robot
Differences Between 6-Axis Welding Robot and Manual Welding
|
Type |
6-Axis Welding Robot |
Welder |
|
Welding Consistency |
High repeat positioning accuracy ensures stable welding paths |
Affected by the welder's experience |
|
Welding Quality |
Stable welding parameters and consistent weld formation |
Easily affected by the operator's condition |
|
Production Efficiency |
Supports long continuous operation with stable welding cycles |
Long working hours can cause fatigue and are limited by shifts |
|
Cost Structure |
Higher initial automation investment, but relatively stable operating costs |
Long-term labor costs continue to accumulate |
|
Product Changeover |
Product switching can be achieved through program adjustment |
Stronger manual adaptability |
|
Working Environment |
Operators do not need close contact with the welding area |
Long-term exposure to welding fumes, arc light and high-temperature environment, with high risk of occupational diseases |
|
Applicable Scenarios |
Standardized and mass production |
Prototyping, repair, and small-batch production |
Robot welding can provide stable welding quality and achieve continuous, standardized welding production. It is suitable for standardized and batch welding applications in industries such as automotive parts, hardware structural components, construction machinery, and metal fabrication.
FAQ
Q1: What welding processes does this 6-axis welding robot support?
This 6-axis welding robot supports industrial welding processes such as MIG/MAG, TIG, and spot welding. It is suitable for various materials including carbon steel, stainless steel, and aluminum alloys, making it an ideal choice for various welding automation applications.
Q2: In which industries is this 6-axis welding robot typically used?
This 6-axis welding robot is widely used in industries such as metal structure processing, construction machinery, sheet metal processing, and heavy equipment manufacturing. These fields have a huge demand for welding and can quickly achieve a return on investment.
Q3: Is this 6-axis welding robot easy to operate?
Yes, our 6-axis welding robot is equipped with an easy-to-use control system and an intuitive programming interface. We provide on-site and remote training services to help operators quickly master the programming, operation, and basic maintenance skills of the robotic welding system.
