Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of palletizing robot arm in China. With abundant experience, we warmly welcome you to buy durable palletizing robot arm in stock here from our factory. All custom made products are with high quality and competitive price.
palletizing robot arm Description

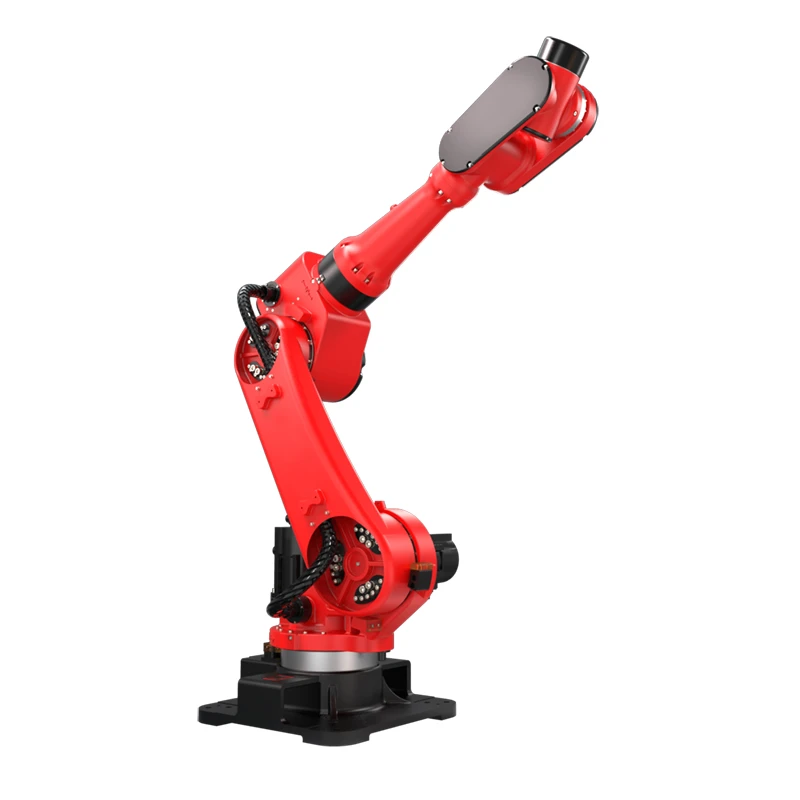

The BRTIRUS2550A 6-axis palletizing robot arm features a 50 kg payload, 2563 mm reach, and ±0.1 mm repeatability for multi-position picking, flexible gripping angles, and mixed-size carton palletizing. It is designed for automotive parts packaging lines, electrical equipment manufacturing, industrial spare parts handling, and mixed-product packaging systems where carton orientation changes and complex pick-and-place movements are required.
Key Features

6-Axis Flexibility for Multi-Angle Palletizing
The BRTIRUS2550A 6-axis palletizing robot arm features J4 ±180°, J5 ±125°, and J6 ±360° wrist rotation, providing greater gripper orientation flexibility than standard 4-axis palletizing robots. It supports multi-angle picking, carton reorientation, and multi-position palletizing in automotive parts packaging and mixed-case palletizing lines.
50 kg Payload for Industrial Carton Handling
The BRTIRUS2550A 50kg palletizing robot arm supports a combined load of up to 50 kg, including cartons and end-of-arm tooling. For example, a 10 kg gripper leaves up to 40 kg for packaged automotive parts, electrical components, or industrial spare parts, subject to the robot's load and center-of-gravity limits.
2563 mm Reach for Multi-Station Layouts
The BRTIRUS2550A long-reach industrial robot arm provides a 2563 mm reach and ±160° J1 rotation for multi-station pick-and-place layouts. These specifications help system integrators evaluate conveyor-to-pallet distances, dual-pallet configurations, and multiple pickup positions in industrial spare parts packaging lines.
±0.1 mm Repeatability for Consistent Placement
The BRTIRUS2550A provides ±0.1 mm repeatability for returning to programmed picking and placement positions during repeated handling cycles. This specification supports consistent gripper positioning when transferring automotive component cartons, electrical equipment packages, and industrial spare parts between fixed conveyor pickup points and pallet locations.
Wrist Speeds Up to 245°/s for Orientation Changes
The 6-axis robot delivers maximum joint speeds of 245°/s on J4 and 223°/s on J5 and J6, supporting wrist rotation during multi-angle picking and carton reorientation. These specifications help robotic system integrators evaluate movement requirements for mixed-case palletizing, multi-conveyor feeding, and packaging lines handling cartons with different pickup orientations.
palletizing robot arm - Detailed Technical Specifications
|
Model |
BRTIRUS2550A |
||
| Axes | 6 axis | ||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±160° |
84°/s |
|
J2 |
±70° |
52°/s |
|
|
J3 |
-75°/+115° |
52°/s |
|
|
Wrist |
J4 |
±180° |
245°/s |
|
J5 |
±125° |
223°/s |
|
|
J6 |
±360° |
223°/s |
|
|
Reach |
2563mm |
||
|
Payload |
50kg |
||
|
Repeatability |
±0.1mm |
||
|
Power Capacity |
8.87kVA |
||
|
Weight |
About 725kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
| Mounting environment | Operating temperature: 0℃~40℃ Best temperature: 15℃~25℃ Relative humidity: 20~80%RH(No condensation) |
||
| Vulnerable parts | J5 timing belt | ||
Work Envelope Drawin

6-Axis Palletizing Robot Arm Applications & Automated Carton Palletizing Solutions
50kg Payload 6-Axis Palletizing Robot Arm for Automotive Parts Packaging Lines
Manually turning and stacking heavy brake-parts cartons slows end-of-line handling, while fixed-path equipment struggles with changing carton orientations. Our 6-axis palletizing robot arm supports multi-angle pickup and programmable stacking between boxing stations, tote conveyors, and pallets in dry packaging areas. Our engineers check the combined gripper and carton weight against the 50kg rated payload, while reviewing the center of gravity and load inertia against the robot's specified limits. We use 2D/3D layouts and agreed pre-shipment FAT procedures to assess handling feasibility.
End-of-Line Robotic Carton Palletizer for Home Appliance & Electrical Equipment Packaging
When carton sizes change or pallets are positioned away from the conveyor centerline, fixed-path handling systems may require additional transfer equipment or manual repositioning. Our 6-axis robotic carton palletizer adapts pickup orientation and placement paths for case sealers, inspection stations, and end-of-line packaging conveyors. Its 2563mm rated reach is checked against the actual working envelope, gripper dimensions, and clearances. Cycle-time reviews and pre-shipment handling and control tests help identify integration issues before on-site commissioning, especially for multi-shift lines.


Flexible 6-Axis Palletizing Robot for Multi-SKU Industrial Spare Parts Warehouses
High-mix spare parts warehouses rely on operators to identify cartons, reconfigure pallets, and reset stacking rules as orders change. Our flexible 6-axis palletizing robot uses selectable stacking recipes for stable, differently sized cartons handled by roller conveyors and tote systems. When connected to barcode sorting stations through suitable PLC and identification interfaces, it can select an appropriate recipe for each configured SKU. For first-time automation projects, we support single-unit purchases and engineer-assisted configuration reviews, helping buyers assess gripper compatibility and palletizing requirements before wider deployment.
Multi-Format Carton Palletizing Robot for Consumer Goods Packaging Lines
Fixed-format machines require time-consuming changeovers when beverage and personal-care cartons vary in size, pickup location, or orientation. Our 6-axis multi-format carton palletizing system supports programmable pick-and-place routines alongside automatic case packers and multi-lane conveyors, with SKU-based palletizing recipes where suitable identification and PLC controls are integrated. For EPC contractors and multi-line automation projects, we coordinate gripper design, conveyor interfaces, and PLC integration. Production updates and agreed FAT procedures help identify interface issues before shipment and reduce project delivery risks.

Get a Preliminary Palletizing Solution Assessment
Share your product dimensions, weight, pallet size, conveyor layout, and target throughput. Our engineers can assess robot payload, working reach, gripper options, and system integration requirements before you finalize your equipment selection.
About RBTIC
Robotic Technology (GD) Co., Ltd. (RBTIC) is a China-based robotic automation solutions provider and industrial robot manufacturer with in-house robot production, engineering, and system integration capabilities. We design, manufacture, and integrate complete robotic automation systems for welding, palletizing, CNC machine tending, injection molding, material handling, assembly and other industrial applications. RBTIC is also a key application and system integration partner of BORUNTE robots, extending our automation capabilities across a broad range of industrial robot applications.
Single Unit Orders Accepted
Factory Direct Supply
Customized Solutions Available

Our Certificate



Trusted by Manufacturers Worldwide
Wherever you are, we deliver end-to-end robotic automation solutions tailored to your production needs.

Case Studies
case 1
50kg Palletizing Robot for Sheet Metal Oil-Dipping Automation
A hardware processing factory in Southeast Asia needed to automate the rust-prevention oil dipping process for unpainted sheet metal parts. Manual handling made it difficult to maintain consistent immersion depth and oil draining time, resulting in uneven anti-rust oil coverage.
Our 50kg payload palletizing robot arm automates sheet metal depalletizing, transfer, and loading and unloading at the oil dipping tank. Through programmed motion control, the robot precisely positions each workpiece during immersion and draining while minimizing the risk of collisions with the tank walls. This automated handling solution helps ensure more uniform oil film coverage, reduces variations caused by manual operation, and improves the consistency and repeatability of the rust-prevention process.

case 2
50kg Palletizing Robot for Bundled Paperboard Stacking
A paper packaging factory handles large volumes of bundled paperboard and finished cartons daily. Manual palletizing often resulted in uneven stacks, unstable pallet loads, and potential hand injuries from sharp paperboard edges.
Our 50kg payload palletizing robot arm can be integrated with the packaging production line to automate repetitive palletizing tasks. Equipped with a dedicated mechanical gripper, the robot securely picks up bundled paperboard from the end of the conveyor and transfers it onto pallets in organized layers. This automated solution helps improve stacking consistency and pallet load stability while reducing manual handling risks and supporting more efficient use of warehouse storage space.

FAQ
Q1: What is the maximum payload capacity of the palletizing robot arm?
Our palletizing robot arm has a rated payload of 50kg, including the combined weight of the product and end-of-arm tooling. It is suitable for palletizing cartons, bagged materials, and other medium-weight products in industries such as food processing, building materials, and logistics.
Q2: Can the palletizing robot arm handle different product sizes and SKUs?
Yes. The 6-axis palletizing robot arm features a programmable control system that supports different palletizing patterns and product configurations. Its standard tool mounting flange accommodates compatible vacuum suction cups, mechanical grippers, and custom end-of-arm tooling. Operators can switch between programmed palletizing tasks to handle different product sizes and SKUs, with gripper adjustments or tool changes when required.
Q3: How much manual labor can a palletizing robot arm reduce?
Depending on production volume, palletizing cycle time, and shift arrangements, one palletizing robot arm may reduce the need for 2–3 manual palletizing workers per shift. By automating repetitive lifting and stacking tasks, it also helps reduce manual handling risks and improve workplace safety. Actual labor savings depend on the production line configuration.
