Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic welding robot in China. With abundant experience, we warmly welcome you to buy durable automatic welding robot in stock here from our factory. All custom made products are with high quality and competitive price.

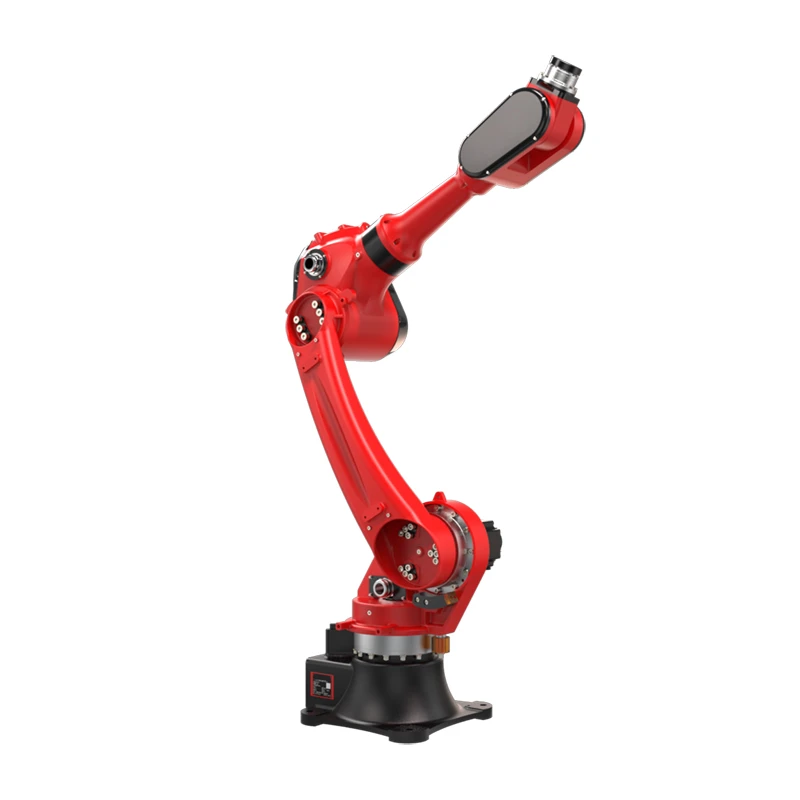

Automatic Welding Robot Description
Automatic welding robot with a 1895 mm reach, 20 kg payload and ±0.05 mm repeatability, running on the HC control system for both arc and spot welding. Weighing approx. 230 kg with a 5.87 kVA power supply, it is built for metal fabrication lines and factory welding automation.
Core Benefits
Repeatability: ±0.05 mm
Repeatability is ±0.05 mm - half the thickness of one A4 sheet. The torch returns to the same coordinate within 0.05 mm on every cycle, so 1.5 mm sheet-metal seams stay on the joint line instead of wandering, cutting grind-and-rework hours. Verify it yourself: run the ISO 9283 100-cycle repeatability test before sign-off.
01
Reach: 1895 mm
A 1895 mm reach gives one arm a 3.79 m working diameter, so a 1.8 m frame or bracket is welded in a single setup - no positioner, no track, no re-clamping. Floor-mounted, one robot can serve two fixtures inside that circle. Check the reach envelope drawing against your longest weldment first.
02
Power: 5.87 kVA
Rated draw is 5.87 kVA - about 5.3 kW at 0.9 power factor, or roughly 85 kWh across a 16-hour two-shift day at full load. It runs off a standard shop circuit, so no transformer upgrade and no new distribution box. Compare this kVA figure line-by-line with any competing spec sheet.
03
Robot Weight: about 230 kg
At about 230 kg, the body is handled by a 1-ton forklift or 2-ton hoist - no reinforced foundation, no crane rental. It bolts down floor-mounted or side-mounted, with an optional riser pedestal to lift the base clear of fixtures. 230 kg means the cell can be relocated over one weekend.
04
Automatic Welding Robot Applications - Arc & Spot Welding Solutions for Metal Fabrication Lines
Automatic Welding Robot for Structural Steel & Sheet Metal Fabrication Lines
Manual welding of frames, brackets and chassis rails almost always means uneven bead height, angular distortion after cooling, and a share of output cycling back through grinding and re-welding. With ±0.05mm repeatability and a 1895mm arm reach, this robot covers a full-size weldment from a single station and reproduces identical beads across the whole batch. Welding parameters are locked inside the HC control system, so unit 500 matches unit 1 with no re-teaching between shifts. Suited to structural steel workshops, sheet metal job shops and OEM frame production lines.
Heat-Resistant Industrial Welding Robot for High-Temperature, High-Spatter and Dust-Heavy Workshops
In boiler, pressure vessel and heavy plate environments, lightweight arms tend to lose positional accuracy as ambient heat rises, while exposed torch cables get burned through by spatter - each failure pulling the cell offline for hours. The 230kg rigid casting resists thermal drift and vibration under continuous arc load, and cable routing is enclosed against spatter and grinding dust. Rated at wrist IP54, body IP40 and ambient temperature of 0–45°C for sustained duty. Applied in agricultural machinery, construction equipment components and pipe-spool welding under hot, dusty shop-floor conditions.
24-Hour Continuous Welding Automation for Auto Parts, EV Battery Tray and Appliance Production Lines
Three-shift lines are where cost per weld is decided: consumable burn rate, unplanned stops and energy draw compound across thousands of cycles. Drawing only 5.87 kVA, this robot keeps the per-part energy cost low while running arc or spot welding continuously and wear points designed for scheduled rather than emergency replacement. Deployed on new-energy battery tray lines, exhaust and seat frame welding, and white goods assembly where takt time and annual maintenance spend are both under pressure.
Custom Automatic Welding Robot Cells for OEM Assembly, Small-Batch Trial Orders and Annual Bulk Procurement
Buyers rarely stall on price - they stall on whether the cell fits their existing fixtures, layout and takt time. We remove that risk before the PO: send your part drawing and our welding engineers return a 3D cell layout, reach envelope check and cycle-time estimate, plus a sample weld run on your own workpiece for small-batch trial orders. Non-standard positioners, fixtures and reach configurations are supported. For annual framework contracts and EPC turnkey packages, our own factory holds an annual production capacity of 1500 units with staged delivery scheduling.
Automatic Welding Robot - Detailed Technical Specifications
|
Model |
BRTIRUS1820A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±155° |
110°/s |
|
J2 |
-140°/+65° |
146°/s |
|
|
J3 |
-75°/+110° |
134°/s |
|
|
Wrist |
J4 |
±180° |
273°/s |
|
J5 |
±115° |
240°/s |
|
|
J6 |
±360° |
375°/s |
|
|
Arm Length |
1895mm |
||
|
Loading Ability |
20kg |
||
|
Repeatability |
±0.05mm |
||
|
Power Source |
5.87kVA |
||
|
Weight |
About 230kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP40 |
||
Work Envelope Drawing
Automatic Welding Robot Case Studies
Case 1
Laser Autogenous Welding for Cover Plates
A home appliance manufacturer in Southeast Asia carries out joint welding on stainless steel cover plates for equipment. These kinds of thin-walled cover plates require high surface finish standards. Manual welding cannot match the production speed of the production line, and causes a high reject rate due to workpiece deformation and burn-through.
The automatic welding robot acts as the core equipment of this project. The project adopts laser welding technology with autogenous mode, which completes welding without using extra filler wire. The robot achieves fast welding speed and an extremely small heat-affected zone in this working mode. It effectively avoids deformation and burn-through of cover plates and forms smooth weld seams. The automatic welding robot greatly reduces subsequent grinding procedures and satisfies the appearance quality requirements for home appliance cover plates.
Case 2
Multi-station Low-spatter Spot Welding
A hardware product supplier in South America engages in mass production of metal frames and grid components. Such workpieces require a large number of welding points. Manual spot welding by workers is low in efficiency and produces heavy welding spatter, which leaves burn marks on workpiece surfaces.
The automatic welding robot has a maximum reach of 1895 mm and wide working coverage to realize multi-station welding. Equipped with low-spatter spot welding technology, the robot minimizes burn damage and surface indentations at welding points and delivers neat weld spots. It effectively protects workpiece appearance and cuts down follow-up cleaning work. It helps the customer achieve high-quality mass production of metal components.
About RBTIC
Robotic Technology (GD) Co., Ltd. is a trusted automatic welding robot manufacturer and automation solutions provider in China. We provide one-stop automation services and deliver tailor-made robotic welding solutions to address the shortage of skilled welders and replace manual welding. With a repeatability accuracy of ±0.05 mm, our systems ensure superior welding consistency, significantly reducing rework and material waste.
Why Manufacturers Choose the RBTIC Automatic Welding Robot?
A Turnkey Welding Cell, Engineered Around Your Parts
RBTIC delivers more than a robot arm. We integrate the 6-axis welding robot with custom fixtures, positioning, vision, safety and PLC control so the system arrives ready to run on your line. This reduces integration risk, shortens time to production, and gives project buyers and OEM partners a single accountable supplier instead of coordinating multiple vendors.
Free Incoming-Material Welding Trial
Before you invest, send RBTIC your actual part and we weld a free sample so you can verify weld quality, penetration and consistency on your own material. This removes the biggest concern for first-time robotic welding buyers: investing in a system that may not meet their specific welding requirements, and turns a high-risk purchase into a proven, data-driven decision.
Low-Barrier Sourcing With a 1-Unit MOQ
With a minimum order quantity of just one unit, RBTIC lets you pilot a single system, validate results on your line, then scale into bulk orders and repeat project supply. This is ideal for job shops and growing fabricators who want to automate without committing to multi-unit orders up front.
CE Certification, Warranty and Factory-Audit Access
RBTIC supplies CE-certified robots backed by a one-year warranty, and we welcome factory audits so buyers can verify capability first-hand. Certificate and compliance documents are available on request to support customs clearance, project acceptance and internal procurement approval - reducing the compliance risk that often stalls cross-border purchases.
Deep Customization Across Seven Dimensions
Every RBTIC automatic welding robot can be tailored across welding parameters, process, fixture/positioning, vision, safety, PLC and 7th axis. This lets integrators and OEM/ODM buyers configure a system precisely for their application rather than forcing parts to fit a fixed standard model - improving weld outcomes and long-term production stability.
Stable Factory-Direct Supply and Export-Ready Delivery
As a robot factory, RBTIC offers stable supply for repeat and project orders, with pre-shipment photo confirmation and wooden-crate packaging engineered for safe international transport. Buyers get transparent quotation, dependable lead times (confirmed at quotation) and export-ready logistics that simplify sourcing for overseas fabrication projects.
Quality Assurance That Reduces Your Procurement Risk
RBTIC every automatic welding robot is produced under quality-controlled manufacturing with inspection support, then verified before it leaves the factory. We validate the process up front with a free incoming-material welding trial, pre-configure welding parameters for your parts, and run in-house testing on the assembled cell. Robots are CE certified, and certification documents can be provided upon request to support customs clearance and internal approval. Buyers are welcome to arrange a factory audit, and test reports are available upon request. Before shipment, final condition is documented through pre-shipment photo confirmation and protected with wooden-crate, export-ready packaging. Backed by a one-year warranty, this process is designed to support bulk orders, project-based procurement and long-term supply - giving distributors, integrators and OEM buyers documented confidence at every step.
Quality control process: incoming-material welding trial → parameter pre-configuration → in-house cell testing → pre-shipment photo confirmation.
Suggested certifications/standards: CE .
Documents for buyers: CE certificate, datasheet, welding-trial report, test report - available on request.
After-Sales Service & Full Lifecycle Technical Support
RBTIC delivers full-lifecycle service rather than one-off sales. We keep your robotic arm for welding running stably year-round and protect your automation investment long-term.
Regular online inspection & maintenance
We arrange periodic remote online inspections to detect potential equipment faults in advance, reduce unexpected shutdowns and extend the service life of your automatic welding robot.
Fast response for breakdown maintenance
Dedicated technical support channel for equipment failures. We provide targeted troubleshooting guidance; on-site service scheme can be arranged for complex faults to minimize production loss.
Supply & replacement of wearing parts
Stable inventory of robot consumables and vulnerable components. You can obtain genuine spare parts efficiently, avoiding long production halt caused by shortage of accessories.
24/7 remote technical support
Engineers provide real-time remote guidance via video for daily operation confusion, programming problems and minor faults, solving issues rapidly without waiting for on-site technicians.
Automatic Welding Robot FAQ
Q: Can I request samples or a trial?
A: Yes. RBTIC offers a free incoming-material welding trial: send us your actual part and we weld a sample so you can verify quality before ordering. This is our standard way of de-risking the purchase for first-time robotic-welding buyers.
Q:What is the MOQ?
A: The minimum order quantity is just one unit. This lets you pilot a single RBTIC automatic welding robot, validate results on your line, and then scale into bulk orders or a longer-term project-supply program with confidence.
Q:What is the lead time?
A: Lead time depends on configuration and customization scope and is confirmed at quotation. Tell RBTIC your part, required options and project timeline, and we will provide a specific lead time with your factory quote.
