Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of column palletizer in China. With abundant experience, we warmly welcome you to buy durable column palletizer in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Column Palletizer

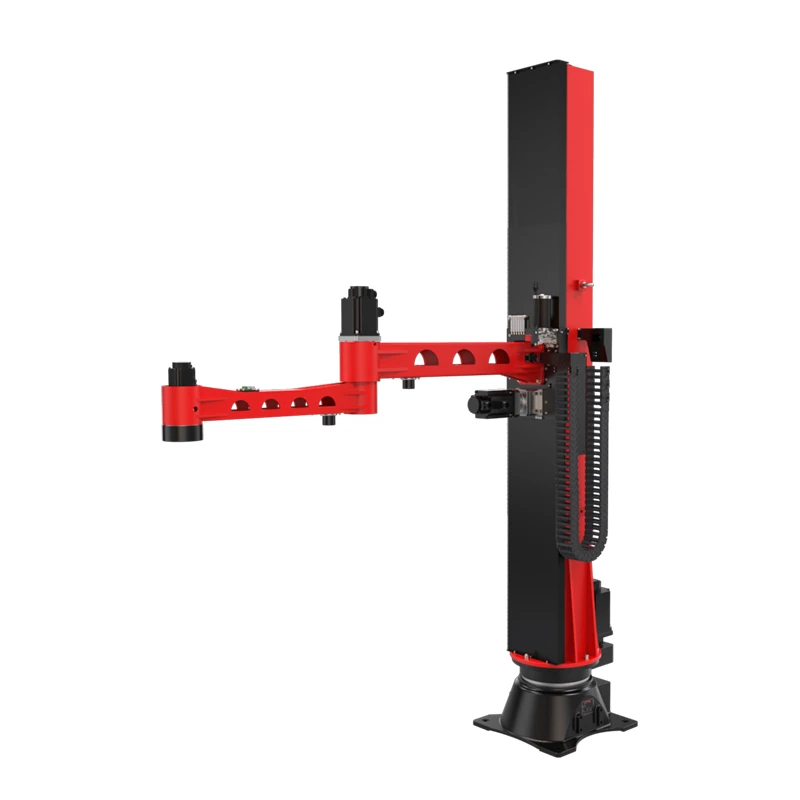

The column palletizer is a robot that operates stably in high-temperature, dusty and high-intensity working environments to complete handling, loading and unloading tasks. It standardizes palletizing operations with unified workflows, free from the impact of staff turnover, and steadily improves production and transfer efficiency.
High Palletizing Capacity
Our column palletizer features a vertical stroke of 1800 mm and a maximum palletizing height of 1800 mm. It delivers high vertical space utilization and enables high-level palletizing to cut down the number of pallets. More goods can be stored within the same floor area, greatly boosting space utilization efficiency.
Large Working Coverage
This column palletizer comes with a rated payload of 65 kg and an arm reach of 2000 mm. Equipped with a built-in rotating base for flexible rotation, it features a wide working range and supports flexible on-site layout.
Understanding Column Palletizer Parameters
|
Model |
BRTIRPZ1865A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
1800mm/s |
600mm/s |
|
J2 |
±170° |
117°/s |
|
|
J3 |
±145° |
171°/s |
|
|
Wrist |
J4 |
±360° |
296°/s |
|
Vertical Stroke |
1800mm |
||
|
Maximum Palletizing Height |
1800mm |
||
|
Arm Length |
2000mm |
||
|
Loading Ability |
65kg |
||
|
Repeat ability |
±0.15mm |
||
|
Power Source |
7.8kVA |
||
|
Weight |
About 618kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
Understanding Basic Dimensions of Column Palletizer
Factory Workshop
All our products hold CE certification. RBTIC integrates design, production and commissioning, and delivers reliable robotic automation equipment to manufacturers across the globe.
Application Scenarios
Food & Beverage Industry
Capable of handling, loading, unloading and palletizing beverage cartons, snack packages, grain sacks, oil drums and dairy cartons.
Logistics & Warehousing Industry
Connects with sorting lines for courier parcels, turnover boxes and cartons to automate loading, unloading and warehousing palletizing, and boost sorting efficiency.
Chemical Industry
Provides palletizing solutions for chemical material bags, paint buckets and more to ensure safe handling of hazardous materials.
Building Materials Industry
Suitable for handling heavy materials such as cement bags, cartons, pipes and gypsum boards. It replaces manual work and reduces the risk of work injuries.
