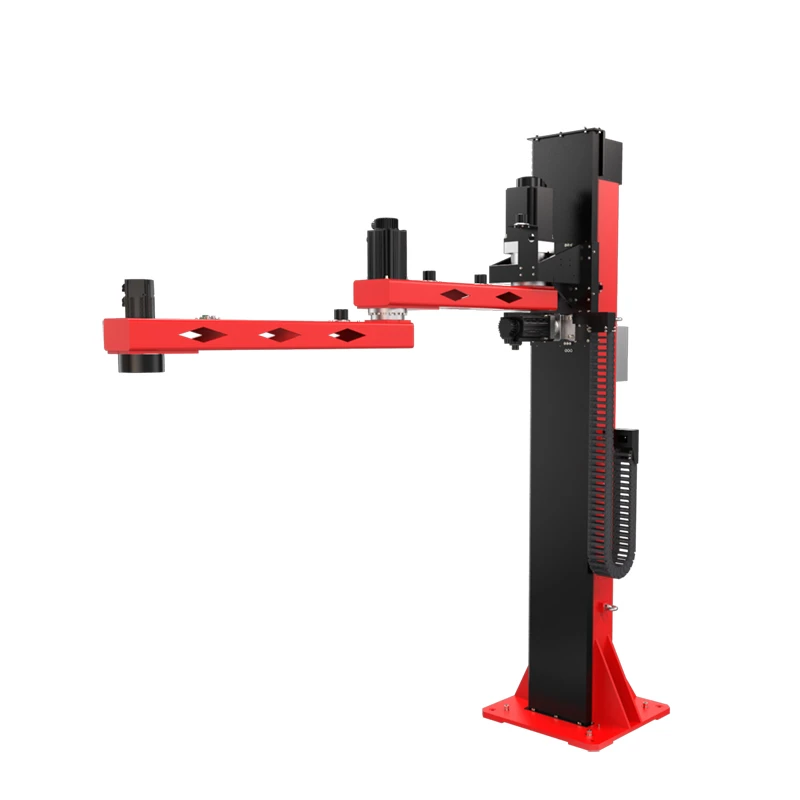

Column Palletizing Robot

Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of column palletizing robot in China. With abundant experience, we warmly welcome you to buy durable column palletizing robot in stock here from our factory. All custom made products are with high quality and competitive price.

The column palletizing robot is programmatically controlled for high-precision positioning to transport products to designated positions. Its repeatability reaches ±0.15 mm, ensuring neat and stable stacking and lowering the risk of collapse or damage during transportation.

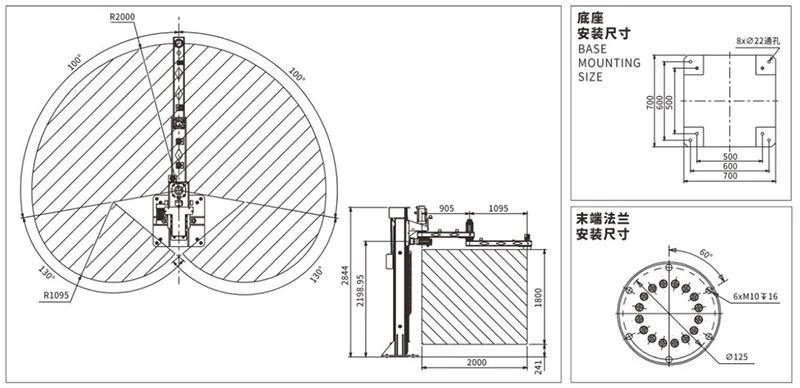

This column palletizing robot features an arm length of 2000 mm and a vertical stroke of 1800 mm. It covers both conveyor lines and pallet areas and supports multi-pallet layout. Adopting a column structure for vertical movement, it has a simple design. Compared with articulated palletizing robots, it has fixed motion paths, low failure rate and easy maintenance, delivering superior stability and durability.

Scenario 1: Palletizing of Putty Powder Woven Bags

A South American building materials manufacturer produces large volumes of powder materials such as putty powder daily, all packed in 25-50kg woven bags. Manual handling and palletizing involve high labor intensity and frequent waist injuries, while the dusty working environment also poses potential safety hazards. This project adopts an 80kg load column palletizing robot equipped with a dedicated bag gripper to stably grab and stack powder bags. With pre-set stacking patterns, the robot arranges bags neatly on pallets to prevent stack collapse. Linked with the downstream packaging line, it enables fully automatic continuous palletizing. This solution cuts manual workload, reduces risks of heavy labor in dusty areas, and improves the efficiency and stability of bagged material palletizing.

Scenario 2: Depalletizing with Spike Gripper for Woven Bags

A plastic products manufacturer in Mexico needs to depalletize and feed woven bags of plastic pellets. Traditional manual depalletizing is strenuous due to heavy bags. Woven bags are prone to slipping and splitting, leading to low efficiency and material loss. Our column palletizing robot is fitted with a professional spike gripper. Steel spikes penetrate the bags for firm gripping, delivering strong adaptability to bags of different tightness and sizes, and effectively avoiding bag slipping, dropping and splitting. Coordinated with hoppers and automatic bag breakers, the robot transports bagged materials to the feeding station and recycles empty bags, realizing fully automatic continuous operation including depalletizing, feeding and waste bag disposal. This solution greatly reduces manual work and enhances the efficiency and stability of depalletizing and feeding processes.
