Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of automated palletizing robot in China. With abundant experience, we warmly welcome you to buy durable automated palletizing robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Automated Palletizing Robot

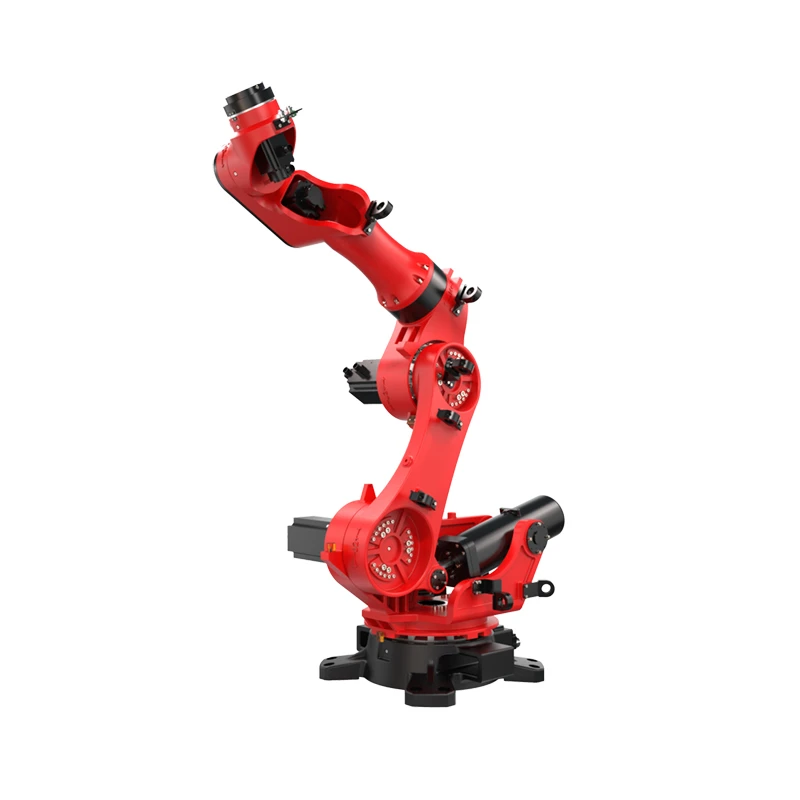

The automated palletizing robot is a six-axis robot that realizes automatic stacking with a robotic arm. Compared with traditional gantry palletizers, it is more flexible, enables quick product changeover, takes up less floor space, needs no factory renovation and features flexible layout. With a maximum payload of 200 kg, it is applicable to the automatic picking and stacking of heavy items including bagged materials, cartoned goods, heavy plates and industrial castings.
Understanding Automated Palletizing Robot Parameters
|
Model |
BRTIRUS2520A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±160° |
63°/s |
|
J2 |
-73°/+70° |
52°/s |
|
|
J3 |
-80°/+105° |
52°/s |
|
|
Wrist |
J4 |
±180° |
94°/s |
|
J5 |
±95° |
101°/s |
|
|
J6 |
±360° |
133°/s |
|
|
Arm Length |
2637mm |
||
|
Loading Ability |
200kg |
||
|
Repeatability |
±0.2mm |
||
|
Power Source |
9.58kVA |
||
|
Weight |
About 1106kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP40 |
||
Understanding Basic Dimensions of Automated Palletizing Robot
Case Studies
Scenarios 1: Loading and Unloading of Plating Hangers
A hardware electroplating factory in Southeast Asia uses hanging racks to transfer and immerse workpieces during the electroplating process. Manual handling of racks involves high labor intensity. Workers are constantly exposed to acid fumes and corrosive substances, which poses significant occupational safety hazards.
This automated palletizing robot can replace manual labor. Equipped with a corrosion-resistant gripper for hangers, it operates reliably beside electroplating tanks under highly corrosive and humid conditions. The robot automatically transports fully loaded hanging racks and precisely attaches them to overhead conveyor hooks to complete automatic hanging. Synchronized with the operating rhythm of the overhead line system, it realizes seamless automatic loading and unloading for electroplating procedures. This solution cuts down manual work, lowers occupational risks in harsh working environments, and enables fully continuous automated production on electroplating lines.
Scenarios 2: Depalletizing and Unloading of Hardware Scrap
A European hardware processing plant generates large quantities of metal scraps and stamping waste on a daily basis. These wastes are collected and stacked inside metal bins. Traditional manual depalletizing and bin handling is strenuous, and sharp scraps often cause cuts and injuries.
Cooperating with positioning tooling, this automated palletizing robot steadily picks up the top bins from stacked storage areas. Its dedicated end gripper clamps the bin edges firmly, transports the full bins above waste hoppers and automatically tips them to discharge materials. After unloading, the robot returns empty bins to the designated stacking zone, forming a complete closed-loop operation. The whole process is fully automated without manual intervention. It effectively prevents safety accidents caused by flying scraps and tipping bins, and achieves automatic depalletizing and unloading of waste bins.
FAQ
Q1: How long does it take to recoup the investment in an automated palletizing robot?
This automated palletizing robot has a payback period of about 3 to 8 months, according to practical application data from the chemical, building materials, logistics and other industries. Depending on actual working conditions, one unit can replace 2 to 4 handling workers per shift and perform palletizing work 24 hours continuously. It achieves an even shorter payback cycle for industries with large daily output and high handling workloads.
Q2: What kinds of products can the automated palletizing robot handle?
This automated palletizing robot is engineered for heavy-duty handling with a maximum payload of 200 kg. It can steadily process various heavy packaged goods, including bagged fertilizer, bagged cement, bagged feed, industrial bagged raw materials and heavy cartons widely used in chemical and related industries. It is not advised to use it for lightweight items like small parts, as this will result in redundant functions and unnecessary cost loss.
