Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of robotic arm for welding in China. With abundant experience, we warmly welcome you to buy durable robotic arm for welding in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Robotic Arm for Welding

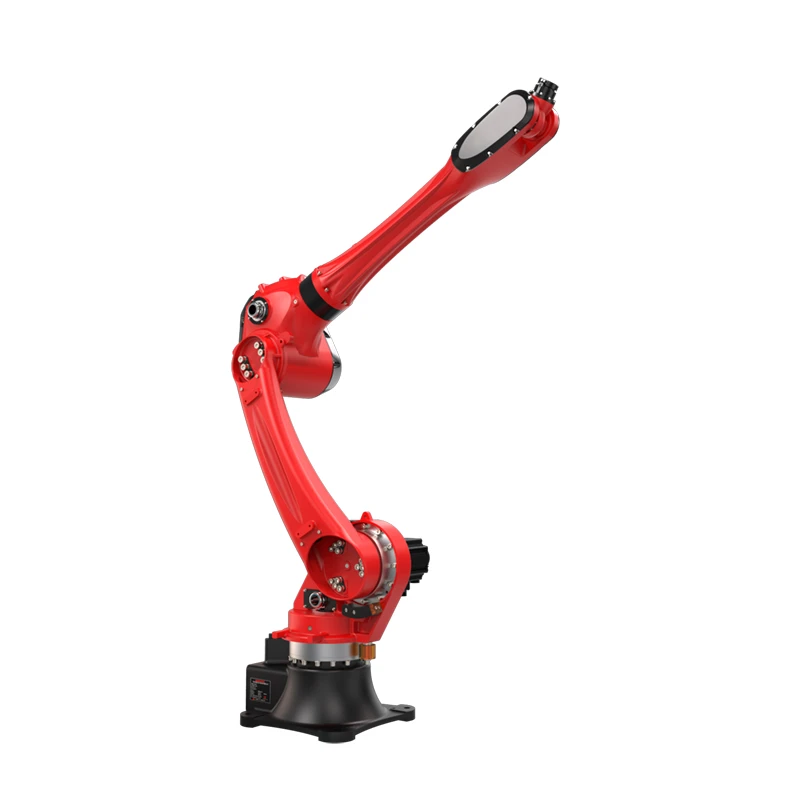

A robotic arm for welding is a 6-axis robot that performs automated metal welding connections under program control. It is widely used in robotic welding systems, material handling and assembly processes. As a core component of highly integrated automated welding solutions, the robotic arm for welding is combined with welding equipment, tooling fixtures and control systems as a whole to achieve stable and efficient automated production.
Understanding Robotic Arm for Welding Parameters
|
Model |
BRTIRUS2110A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±155° |
110°/s |
|
J2 |
-140°/+65° |
146°/s |
|
|
J3 |
-75°/+110° |
134°/s |
|
|
Wrist |
J4 |
±180° |
273°/s |
|
J5 |
±115° |
300°/s |
|
|
J6 |
±360° |
342°/s |
|
|
Arm Length |
2131mm |
||
|
Loading Ability |
10kg |
||
|
Repeatability |
±0.05mm |
||
|
Power Source |
6.48kVA |
||
|
Weight |
About 230kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP40 |
||
Understanding Basic Dimensions of Robotic Arm for Welding
Core Advantages
The robotic arm for welding is equipped with an extended reach of 2131 mm and features wide working coverage, which adapts to all types of production layouts.
The robot achieves a high repeat positioning accuracy of ±0.05 mm. It replicates welding paths precisely to ensure stable and consistent welding quality.
The robot delivers stable motion control and constant cycle time. Combined with standardized welding procedures, it simplifies production scheduling and order taking, and enables effective control over delivery lead time.
Trusted by Manufacturers Worldwide
RBTIC is deeply engaged in the global manufacturing industry and delivers customized robotic automation solutions to support efficient, stable and sustainable production.
- 10+ Years Experience
- 1000+ Automation Projects
- 40+ Export Countries
Case Studies
Application Scenario 1: Welding of Aluminum Alloy Guardrails
A guardrail manufacturer in Mexico assembles square aluminum tubes and round aluminum tubes into balcony guardrails. Manual welding of aluminum alloy is prone to oxidation and workpiece deformation. This project adopts five robotic arms for welding equipped with pulsed MIG welding technology.The robots reduce oxidation issues and the need for post-weld grinding, and effectively prevent weld seams from oxidizing and turning black. With matched digital welding parameters, they precisely control welding heat input and restrict thermal deformation of aluminum profiles. This solution enables stable mass production and ensures excellent appearance quality and structural firmness of aluminum alloy guardrails.
Application Scenario 2: Welding of Stainless Steel Flanges
A pipe fitting supplier in Europe performs circumferential butt welding between 304 stainless steel flanges and pipes. Manual welding commonly causes defects such as porosity, slag inclusions and oxidized black weld beads, which impair the sealing accuracy of subsequent installation. This project deploys one robotic arm for welding with dedicated pulsed MIG welding technology for stainless steel. The robotic arm for welding automatically completes continuous full-circle circumferential welding of flanges, improving weld consistency and assembly sealing performance. Fitted with a laser seam tracking system, the robotic arm for welding identifies weld seam positions in real time to avoid weld deviation, and guarantees reliable welding quality and assembly precision of stainless steel flanges.
