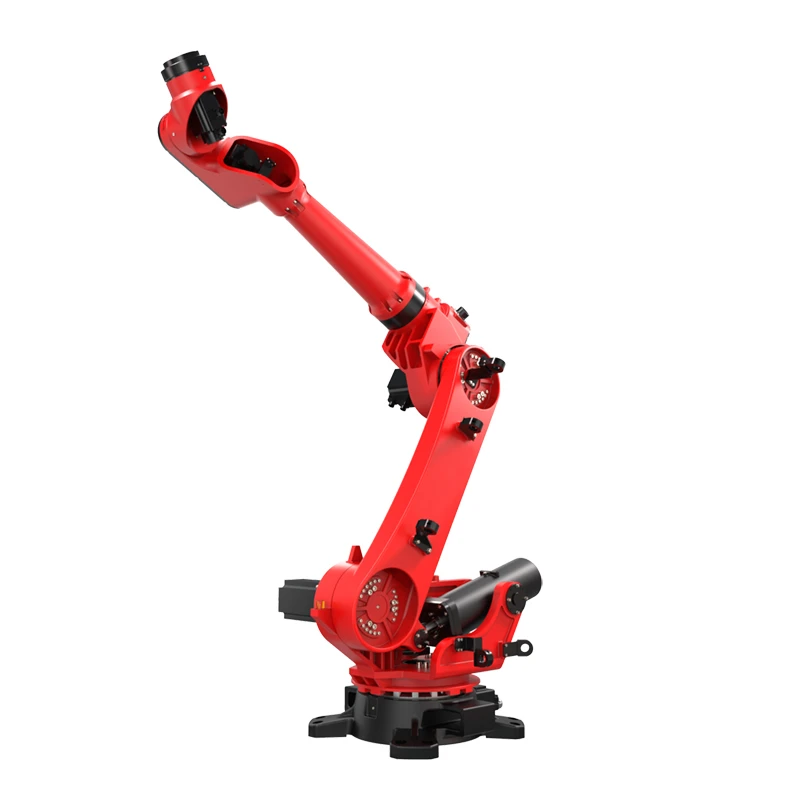

Robotic Case Palletizer

Robotic Case Palletizer
Details:
Model: BRTIRUS3511A 6-axis robot
Repeatability: ±0.2mm
Payload: 100kg
Reach: 3503mm
MOQ: 1 unit
Send Inquiry
Description
Send Inquiry

Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of robotic case palletizer in China. With abundant experience, we warmly welcome you to buy durable robotic case palletizer in stock here from our factory. All custom made products are with high quality and competitive price.



Robotic Case Palletizer Description

The BRTIRUS3511A robotic case palletizer is a 6-axis robot designed to pick packed cartons from conveyor lines and stack them onto pallets in automated end-of-line packaging systems. With a 100 kg payload, 3503 mm reach, and ±0.2 mm repeatability, it handles heavy cartons across multiple conveyor discharge points and palletizing positions. It is suited for appliance packaging, corrugated box production, consumer goods, and industrial plastic products.

BRTIRUS3511A robotic case palletizer





BRTIRUS3511A – 100kg Long-Reach Robotic Case Palletizer



6-axis robotic case palletizer palletizing solutions

3503mm Extended Reach for Flexible Palletizing Layouts

The BRTIRUS3511A offers a 3503mm reach to handle cases across widely spaced conveyor and palletizing positions. Its extended working range supports flexible robotic palletizing system layouts, including centralized stations and potential multi-line configurations. This helps manufacturers plan carton handling operations around existing production equipment, subject to workspace and layout requirements.

100kg Payload for Heavy-Duty Case Palletizing

With a maximum payload of 100kg, the BRTIRUS3511A supports heavy carton handling and multi-case gripping in industrial packaging operations. Its high load capacity provides flexibility for handling large shipping cases or multiple cartons per cycle, making it suitable for appliance packaging and finished-goods palletizing. Payload selection must account for the combined weight of the cases and end-of-arm tooling.

6-Axis Movement for Versatile Case Handling

The BRTIRUS3511A features six-axis movement, including ±160° J1 rotation, ±180° J4 rotation, and ±360° J6 rotation, to support flexible carton pickup and placement orientations. This versatility helps system integrators design robotic case palletizing cells with angled conveyors, offset pallet positions, and different handling approaches while accommodating the robot's working envelope.

±0.2mm Repeatability for Consistent Palletizing Cycles

With ±0.2mm positioning repeatability, the robot delivers repeatable robot movements during programmed carton pickup and pallet placement cycles. This precision supports consistent motion execution for repetitive case palletizing tasks in manufacturing and packaging environments. Actual carton placement performance depends on gripper configuration, carton characteristics, and system calibration.



Robotic Case Palletizer - Detailed Technical Specifications



Model

BRTIRUS3511A

Axes 6 axis

Item

Range

Max.Speed

Arm

J1

±160°

85°/s

J2

-75°/+30°

70°/s

J3

-80°/+85°

70°/s

Wrist

J4

±180°

82°/s

J5

±95°

99°/s

J6

±360°

124°/s

Reach

3503mm

Payload

100kg

Repeatability

±0.2mm

Power Capacity

9.71kVA

Weight

About 1187.5kg

Control System

HC Control System

Power Supply

380V

Mounting environment Operating temperature: 0℃~40℃
Best temperature: 15℃~25℃
Relative humidity: 20~80%RH (No condensation)
Vulnerable parts None



Work Envelope Drawin

Robotic Case Palletizer Working Envelope Diagram



Long Reach Robotic Case Palletizer Applications & Industrial Palletizing Solutions





100kg Robotic Case Palletizer for Large Appliance & Electrical Product Packaging

Manual palletizing of bulky appliance cartons often requires multiple operators, increasing labor costs and the risk of carton collisions or inconsistent stacking. Our 100kg robotic case palletizer, featuring a 3503mm extended reach, can be integrated with automatic case sealers, heavy-duty roller conveyors, and distant palletizing stations based on the production line layout. Ideal for dry indoor appliance and electrical product packaging lines, this six-axis solution supports repeatable carton handling and reduces repetitive manual lifting. Our engineers provide 2D/3D layout analysis, customized gripper design, and pre-purchase feasibility assessments to ensure compatibility with existing packaging equipment.

3.5m Reach Palletizing Robot for Corrugated Carton & Packaging Manufacturing

Handling oversized corrugated carton bundles manually creates repetitive lifting demands, while conventional short-reach palletizers may struggle with gaps between strapping machines and pallet stations. Our 3.5m reach palletizing robot offers a flexible solution for corrugated box manufacturers handling bundled cardboard, strapped cartons, and finished packaging products. Its 3503mm working reach supports separated pickup and palletizing positions in dry indoor production environments. Our engineers assess bundle dimensions, weights, and strapping methods to recommend customized grippers and stacking configurations. We support engineer-led equipment selection, single-unit pilot projects, and customized palletizing layouts before larger-scale production upgrades

Long Reach Robotic Case Palletizer Applications
BRTIRUS3511A robotic case palletizer applications

Long Reach Robotic Case Palletizer for 24-Hour Multi-Line Consumer Goods Packaging

Traditional manual palletizing across multiple consumer goods packaging lines requires substantial staffing, while short-reach robots may struggle to cover widely spaced discharge points. Our long reach robotic case palletizer supports multi-line case palletizing solutions for carton sealers, conveyor merging systems, and centralized palletizing stations. With a 3503mm reach and 100kg payload capacity, it can serve multiple planned pickup and placement locations, reducing repetitive handling and supporting consistent material flow. For 24-hour production facilities, our engineers evaluate cycle times, conveyor interfaces, and maintenance requirements to develop integrated solutions aimed at reducing operating costs.

Robotic Case Palletizer for Injection-Molded Plastic Products & Packaging Containers

Manually transferring large cartons of injection-molded components or plastic containers across extensive production areas increases handling time and the risk of carton tilting or damage. Our 100kg long reach robotic case palletizer integrates with injection-molding packaging lines, tote-sealing equipment, and automated pallet conveyors, supporting multiple pickup points and distant pallet stations. Custom grippers, stacking patterns, and 2D/3D layout engineering help match different carton dimensions, load characteristics, and plant configurations. For OEM system integrators, turnkey engineering projects, and annual bulk procurement, we provide factory-direct supply, single-unit purchasing options, and coordinated production scheduling.



modular-1

Looking for a Custom Long-Reach Robotic Case Palletizer Solution?

Share your carton dimensions, load weight, conveyor layout, pallet specifications, and required cycle time. Our engineers can evaluate your application and provide a customized 2D/3D palletizing layout and gripper recommendation.



About RBTIC

One-Stop Robotic Solution Provider

Robotic Technology (GD) Co., Ltd. (RBTIC) is a China-based robotic automation solutions provider and industrial robot manufacturer with in-house robot production, engineering, and system integration capabilities. We design, manufacture, and integrate complete robotic automation systems for welding, palletizing, CNC machine tending, injection molding, material handling, assembly and other industrial applications. RBTIC is also a key application and system integration partner of BORUNTE robots, extending our automation capabilities across a broad range of industrial robot applications.



RBTIC Robotic Case Palletizer Applications





How Does a Robotic Case Palletizer System Integrate with Existing Packaging Lines?

Customer group photo-01
Customer group photo-8.jpg
Customer group photo-7.jpg



Long-Reach Conveyor Integration

With a 3503mm arm reach, this robotic case palletizer accommodates widely spaced conveyor discharge points and palletizing stations.

01

PLC Communication and Line Synchronization

PLC integration coordinates case packers, carton sealers, and conveyors for synchronized end-of-line palletizing.

02

Flexible Layouts and Multi-Station Palletizing

The extended working envelope supports flexible packaging line layouts and multi-station configurations, depending on reach and load requirements.

03

Safety and Scalable Automation

Integrated sensors, safety interlocks, and centralized controls support reliable operation, streamlined troubleshooting, and future packaging line expansion.

04



Case Studies



case 1



Robotic Palletizer for 25–30kg PE Resin Bags in Europe

A European polyethylene (PE) resin wholesaler handled large volumes of 25–30 kg PE resin bags daily. Manual palletizing was labor-intensive, inefficient, and increased the risk of bag damage.



To improve operations, a robotic palletizer with a 100 kg payload capacity was integrated with the existing roller conveyor line. Equipped with a dedicated pneumatic bag gripper, the RBTIC robot automatically picked individual bags from the conveyor and placed them onto pallets in a five-point stacking pattern, ensuring stable handling and reducing bag breakage. It enabled continuous feeding, precise bag handling, and consistent pallet stacking.

PE Polyethylene Raw Material Palletizing

case 2



Robotic Palletizer for Curved Feed Tower Panels in South America

A South American agricultural equipment manufacturer required automated palletizing of curved metal panels used in livestock feed towers. These large, thin-walled panels were difficult to handle manually and prone to deformation from uneven gripping pressure.



To improve handling, an RBTIC robotic palletizer with a custom-designed gripper was integrated with the forming machine's discharge line. Triggered by PLC signals, the robot automatically picked up finished panels, applied even gripping pressure to minimize deformation, and flipped them through controlled gripper orientation before stacking them according to preset patterns. The integrated system enabled continuous automated handling from panel forming to palletizing, reducing manual intervention while ensuring stable handling and consistent stacking of curved metal panels.


Feed Tower Enclosure Panel Palletizing



FAQ

Q: What Is the Maximum Reach and Payload of This Robotic Case Palletizer?

A: The BRTIRPZ1508A robotic case palletizer features a 3503mm arm reach and a 100kg rated payload. Its six-axis design supports flexible palletizing layouts, particularly where conveyor discharge points and pallet positions are widely spaced. The 100kg payload includes the gripper and handled load, making proper tooling selection essential for medium-to-heavy case palletizing applications.

Q: Can One Robotic Case Palletizer Serve Multiple Packaging Lines?

A: Yes, a single robotic case palletizer can potentially serve multiple packaging lines when the layout and production requirements are suitable. Its 3503mm arm reach provides flexibility for accessing widely spaced conveyor discharge points and palletizing stations. Multi-line operation depends on the robot's working envelope, combined production throughput, gripper design, and system coordination. Layout and cycle-time verification are required.

Q: What Box Sizes and Weights Can This Robotic Palletizer Handle?

A: With a 100kg rated payload, this robotic case palletizer is designed for medium-to-heavy case handling applications, including packaged electrical products, corrugated cartons, consumer goods, and industrial plastic containers. Compatible box dimensions and weights depend on the gripper, load distribution, and palletizing configuration. The combined weight of the gripper and handled cases must remain within the robot's rated payload.

Q: Can This Robotic Palletizer Integrate with Existing Packaging Lines?

A: The BRTIRPZ1508A robotic case palletizer can be considered for integration with existing packaging lines, including conveyor-based case handling systems. Its 3503mm arm reach offers layout flexibility where discharge points and palletizing stations are separated. Integration feasibility depends on conveyor interfaces, PLC communication requirements, available floor space, safety arrangements, and production cycle times. Site-specific engineering assessment is recommended before installation.
