Learn About Sprue Picker Robot

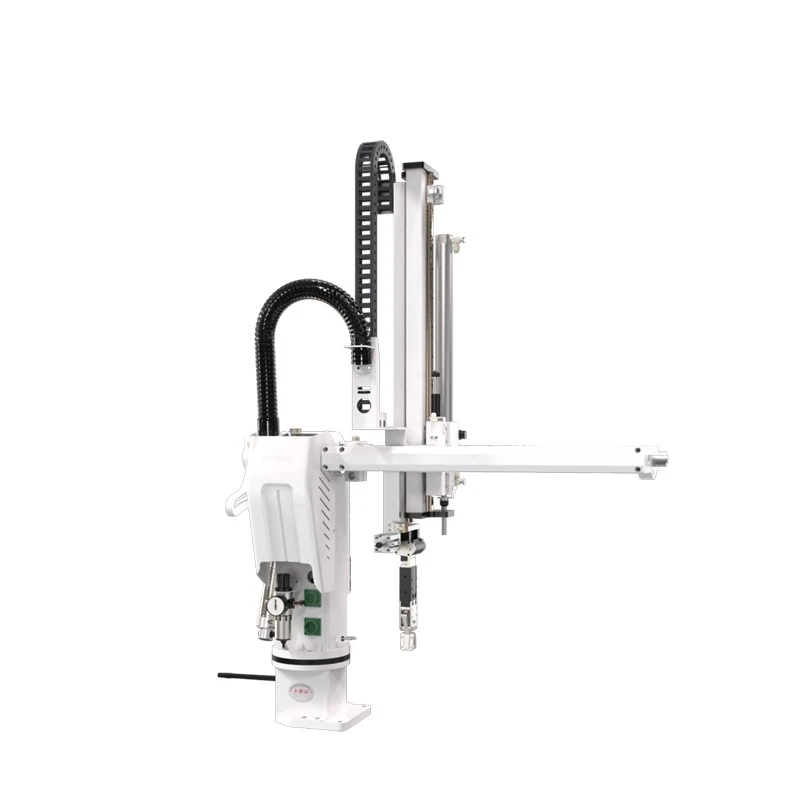

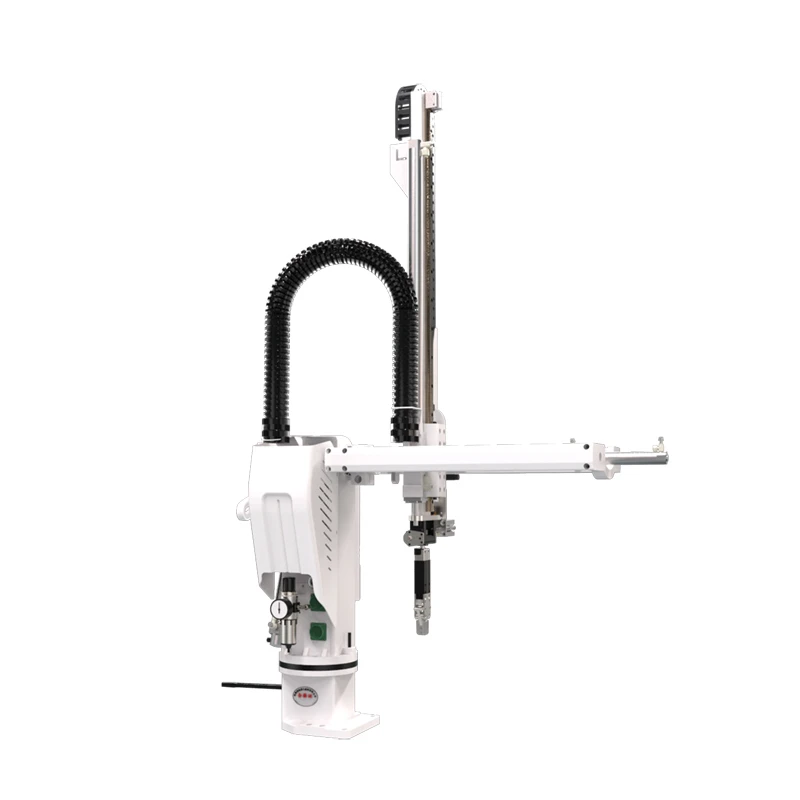

The sprue picker robot is a specialized automated manipulator compatible with injection molding machines. It is used to automatically remove sprue waste and runner scrap after injection molding, replacing manual trimming and runner removal. Featuring a compact structure, this manipulator is designed for high-speed, light-load removal, making it ideal for workshops with small- to medium-tonnage injection molding machines. It enables labor-saving automation, production acceleration, and safe operation.
Specifically designed for automatic sprue removal on injection molding machines, this sprue picker robot delivers positional repeatability of up to ±0.05 mm with stable removal motion, suitable for high-speed removal operations. With a pneumatic cylinder-driven structure, it features fast response and low maintenance requirements. With an air consumption of only 3 Nl per cycle, it effectively reduces long-term operational energy consumption and operating costs.
Understanding Sprue Picker Robot Parameters
|
Model |
BRTP06ISS0PC |
BRTP08WSS0PC |
|
Power Source(kVA) |
0.05 |
1.27 |
|
Recommended I.M.M(ton) |
30T-150T |
150-250T |
|
Drive Method |
Driven by cylinder |
Driven by cylinder |
|
Model of EOAT |
Zero suctions Zero fixtures |
Zero suctions Zero fixtures |
|
Traverse Stroke(mm) |
/ |
/ |
|
Crosswise Stroke(mm) |
120 |
300 |
|
Vertical Stroke(mm) |
650 |
850 |
|
Max.Payload(kg) |
2 |
2 |
|
Dry Take Out Time(sec) |
1.6 |
2 |
|
Dry Cycle Time(sec) |
5.5 |
6 |
|
Swing Angle(degree) |
30°- 90° |
30°- 90° |
|
Air Consumption(NI/cycle) |
3 |
3 |
|
Repeatability(mm) |
±0.05 |
±0.05 |
|
Weight(kg) |
36 |
60 |
Basic Dimension Drawing of Sprue Picker Robot
FAQ
Q1: Which brands of injection molding machines are compatible with this sprue picker robot?
Designed with standardized interfaces, this sprue picker robot enables quick connection to mainstream injection molding machine brands on the market, including Haitian, Chen Hsong, Yizumi, Engel, Arburg, and Husky. It can be rapidly put into production without complicated equipment modification.
Q2: What is the load capacity of this sprue picker robot?
The maximum payload of this sprue picker robot is 2 kg (including gripper), which allows stable gripping of most injection molding sprues and small lightweight molded plastic parts. Widely used to remove lightweight components such as plastic packaging parts, personal care and household product housings, electronic components, and medical consumables, it meets conventional sprue picking requirements for injection molding production.
