Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of plastic injection molding robot in China. With abundant experience, we warmly welcome you to buy durable plastic injection molding robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Plastic Injection Molding Robot

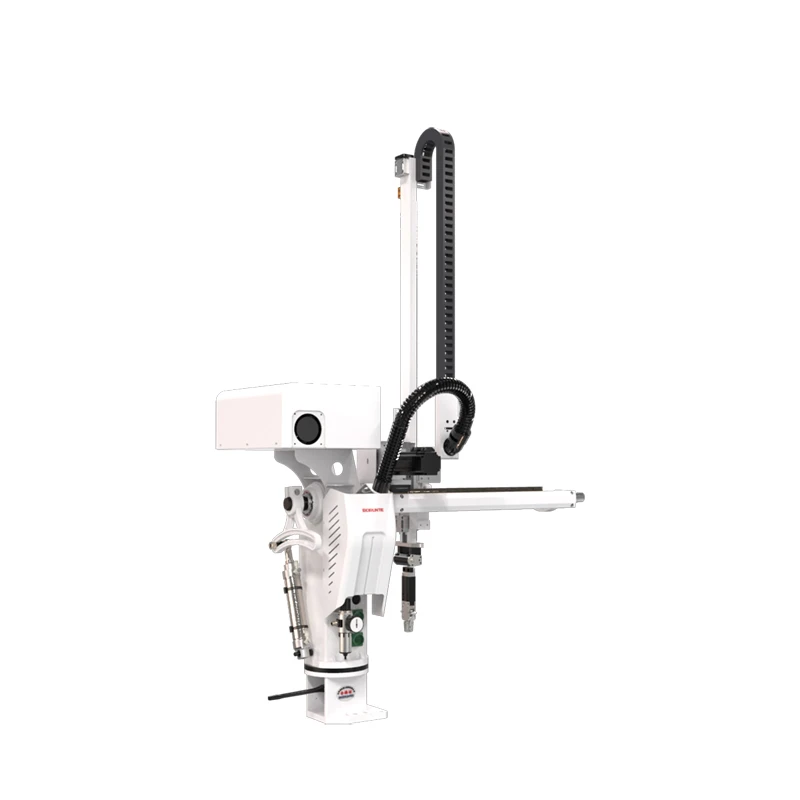

The plastic injection molding robot is a servo manipulator installed on the injection molding machine. It is mainly used for part removal after mold opening, performing program-controlled gripping, extracting, placing, or conveying of plastic products.
This robot is specially designed for automatic part removal on 60–200 ton injection molding machines, enabling quick equipment integration and continuous automated production in injection molding workshops. Featuring a high-speed pneumatic structure, it achieves a take-out time as low as 1.4 s and a full cycle time of only 5 s, effectively reducing mold opening waiting time and improving machine utilization and overall production efficiency.
Application Scenarios
Personal Care & Household Products
Plastic bottle caps, spray heads, pump heads, plastic packaging shells, bottle bodies, etc.
Food Packaging
Take-out food containers, food storage containers, beverage cups, plastic cups, etc.
Electronics
Electronic housings, connector housings, connectors, small structural parts, buttons, brackets, etc.
Understanding Plastic Injection Molding Robot Parameters
|
Model |
BRTP07ISS1PC |
|
Power Source(kVA) |
1.2 |
|
Recommended I.M.M (ton) |
60T–200T |
|
Drive Method |
AC Servo motor Driven by cylinder |
|
Model of EOAT |
Zero suctions Zero fixtures |
|
Traverse Stroke(mm) |
/ |
|
Crosswise Stroke(mm) |
115 |
|
Vertical Stroke(mm) |
750 |
|
Max.Payload(kg) |
2 |
|
Dry Take Out Time(sec) |
1.4 |
|
Dry Cycle Time(sec) |
5 |
|
Swing Angle(degree) |
30°- 90° |
|
Air Consumption(NI/cycle) |
3 |
|
Repeatability(mm) |
±0.05 |
|
Weight(kg) |
50 |

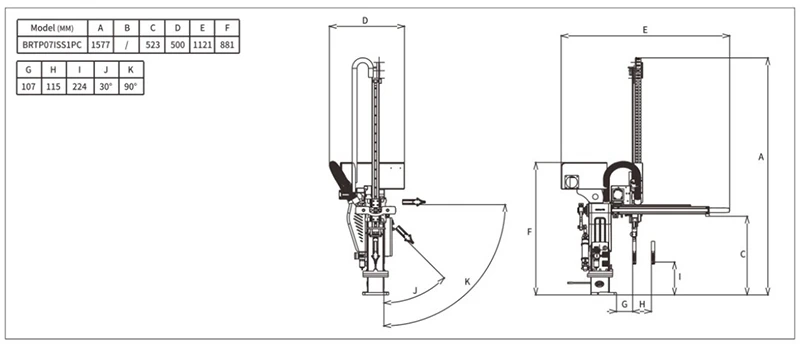

Basic Dimension Drawing of Plastic Injection Molding Robot
FAQ
Q1: What is the positioning accuracy of the plastic injection molding robot?
The repeatability of this plastic injection molding robot reaches ±0.05 mm. It delivers consistent and precise part-picking positioning, effectively preventing parts from dropping or shifting during removal. Servo-driven for smooth motion, the robot can be equipped with custom tooling fixtures to closely fit product contours, avoiding scratch damage and compressive deformation of molded plastic parts and ensuring high yield.
Q2: Can irregular-shaped workpieces be picked stably?
Yes. Our plastic injection molding robot supports custom end-of-arm tooling, including suction cups and clamping jaws. Its picking angle is adjustable from 30° to 90°, making it suitable for automated part removal of irregularly shaped workpieces.
