Learn About Plastic Injection Robot

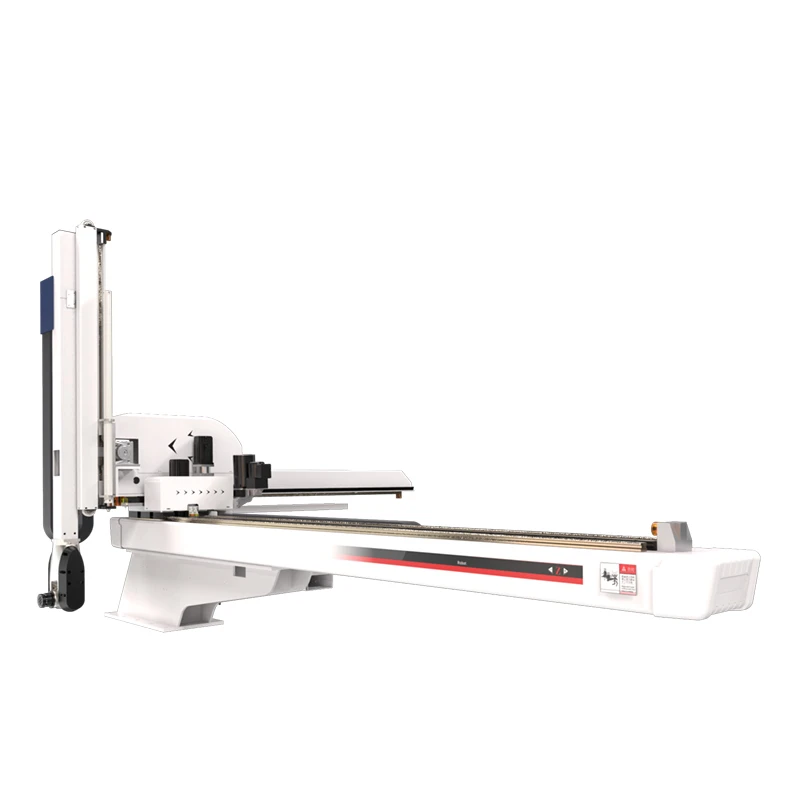

The plastic injection robot is a servo manipulator that automates part picking inside the mold area, replacing manual labor. It performs fully automatic mold-in/mold-out part extraction to eliminate direct human contact with high-temperature molded plastic products, effectively lowering occupational risks such as pinch injuries and burns and improving overall production safety for manufacturers.
Heavy-Duty Injection Automation Application
Compatible with large-scale injection molding machines from 600T to 1700T, this plastic injection robot is engineered for large molds and oversized plastic components to cover heavy-industry injection-molding scenarios. With a maximum load of 20 kg, it replaces 2 to 3 workers for pick-and-place of bulky plastic parts, easing manual handling workload and boosting safety and automation efficiency for heavy-load production.
High-Speed & Stable Part Extraction
Our plastic injection robot's single take-out time is only 4.45 s, which shortens idle waiting time of injection molding machines and improves equipment utilization and continuous production efficiency. Its full cycle time is as short as 13.32 s, supporting non-stop 24-hour fixed-cycle operation. Compared with manual operation, the robot delivers far more consistent production pace to meet high-volume continuous automation needs and enhance order fulfillment reliability.
Understanding Plastic Injection Robot Parameters
|
Model |
BRTN17WSS3PC |
BRTN17WSS5PC |
|
Power Source(kVA) |
4.23 |
4.23 |
|
Recommended I.M.M(ton) |
600T–1700T |
600T–1700T |
|
Drive Method |
AC Servo motor |
AC Servo motor |
|
Model of EOAT |
Four suctions Two fixtures |
Four suctions Two fixtures |
|
Traverse Stroke(mm) |
2510 |
2510 |
|
Crosswise Stroke(mm) |
1415 |
1415 |
|
Vertical Stroke(mm) |
1700 |
1700 |
|
Max.Payload(kg)) |
20 |
20 |
|
Dry Take Out Time(sec) |
4.45 |
4.45 |
|
Dry Cycle Time(sec) |
13.32 |
13.32 |
|
Air Consumption(NI/cycle) |
15 |
15 |
|
Repeatability(mm) |
±0.1 |
±0.1 |
|
Weight(kg) |
585 |
585 |

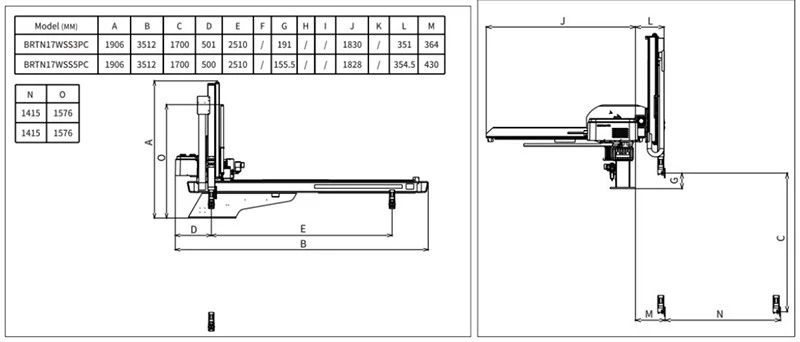

Basic Dimensions of the Plastic Injection Robot
Customized Injection Molding Automation Solutions
RBTIC provides tailored injection molding automation solutions based on customer products, mold structures, machine specifications, production takt times, and on-site layouts.
For machines with sufficient top-mounting space, we typically select injection molding robots to perform insert loading, part removal, sprue removal, and auto-stacking.
When ceiling height is limited, mold structures are complex, or products require subsequent inspection, assembly, and palletizing, we offer six-axis industrial robot solutions with custom fixtures and auxiliary equipment for enhanced flexibility.
Through optimal model selection and system integration, we help customers improve efficiency, reduce labor costs, and achieve sustainable, reliable automated production.
