Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of molding machine robot in China. With abundant experience, we warmly welcome you to buy durable molding machine robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Molding Machine Robot

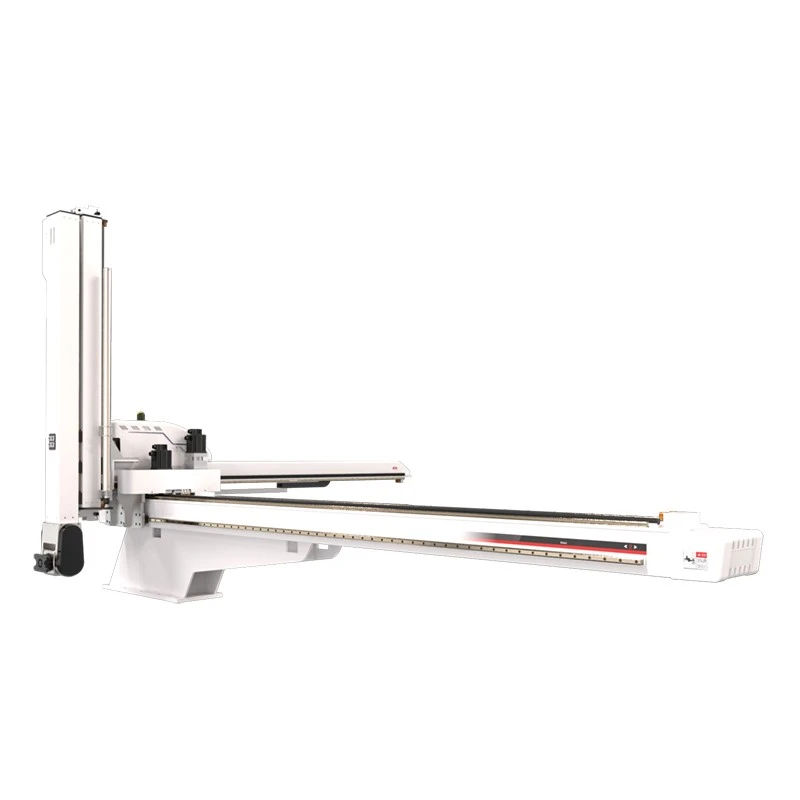

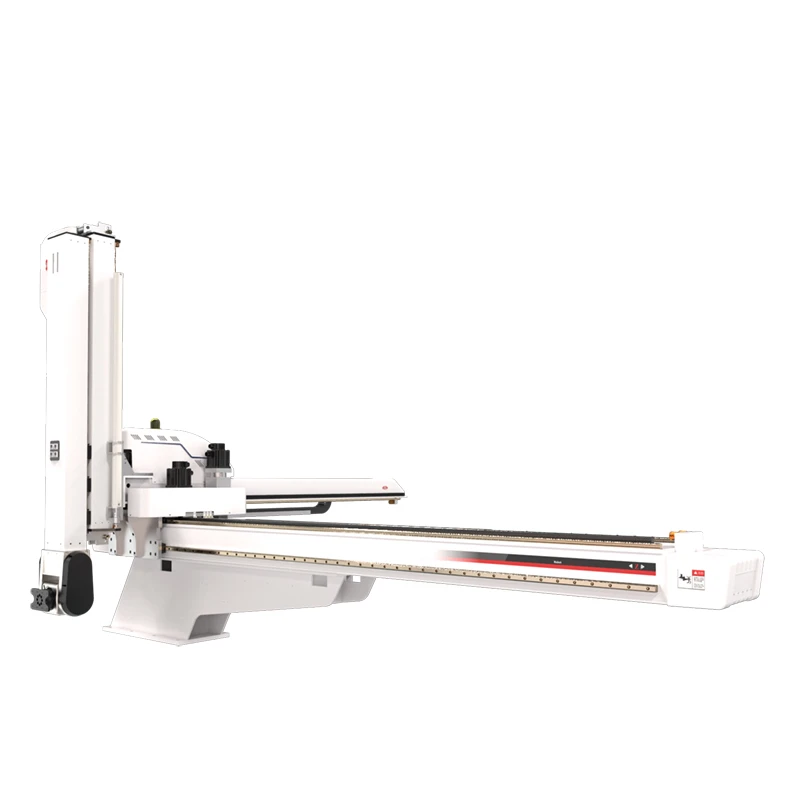

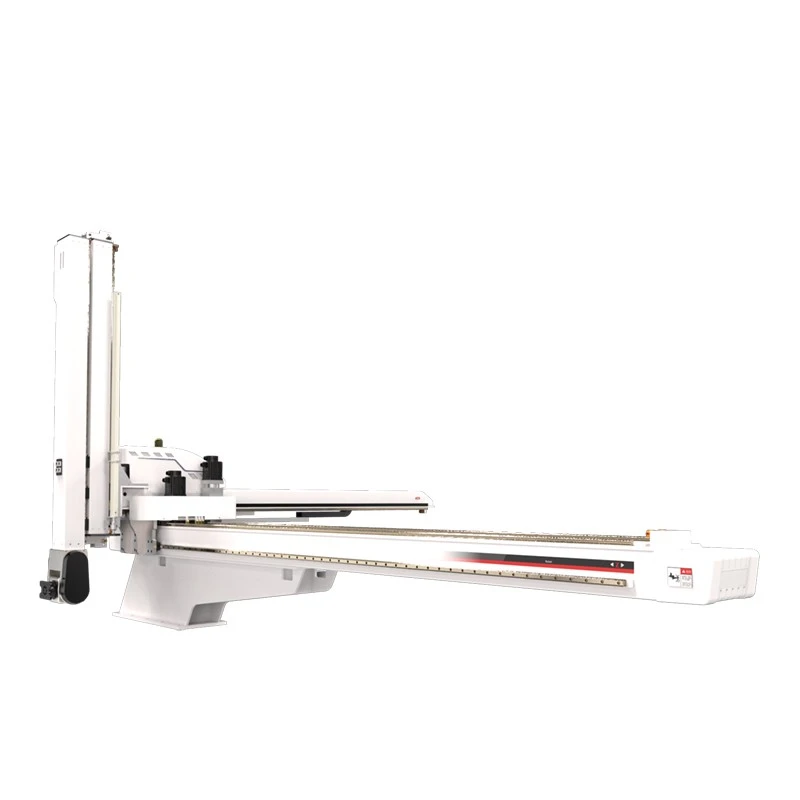

An molding machine robot is a 5-axis servo manipulator dedicated to part picking on automated injection molding production lines. A single robot can replace 2 to 4 operators to complete gripping, placing and sorting tasks. Featuring easy system integration and strong expandability, it is essential production equipment to cut labor costs and realize full automation for injection molding production.
High-Load Automated Part Extraction Capacity
With a maximum payload of 40 kg–60 kg, this molding machine robot is custom-developed for automatic demolding of oversized plastic products. It reliably handles heavy workpieces such as plastic pallets, auto spare parts, and large housings, meeting automated picking demands for heavy-duty products in workshops with large-tonnage IMMs.
Stable Gripping for Large-Size Workpieces
Compatible with 1300T–4000T large injection molding machines, our molding machine robot is fitted with a specialized gripper featuring 4 suction cups and 2 clamping arms. Multi-point suction distributes stress evenly across parts, effectively lowering deformation risks for bulky plastic components. Compared with conventional single-point suction technology, it delivers superior gripping stability and is suited for continuous automated demolding of large structural plastic parts.
Understanding Molding Machine Robot Parameters
|
Model |
BRTN24WSS5PC/FC |
BRTN30WSS5PC/FC |
BRTN30WSS5PF/FF |
|
Power Source(kVA) |
5.9 |
6.1 |
6.1 |
|
Recommended(ton) |
1300T–2100T |
2200-4000T |
2200-4000T |
|
Drive Type |
AC Servo Motor |
AC Servo Motor |
AC Servo Motor |
|
Fixture Configuration |
Four suctions Two fixtures |
Four suctions Two fixtures |
Four suctions Two fixtures |
|
Traverse Stroke(mm) |
3200 |
4000 |
≤6000 |
|
Crosswise Stroke(mm) |
2000 |
2500 |
≤2500 |
|
Vertical Stroke(mm) |
2400 |
3000 |
≤3000 |
|
Max.loading(kg) |
40 |
60 |
60 |
|
Dry Take Out Time(sec) |
7.04 |
8.43 |
TBC |
|
Dry Cycle Time(sec) |
15.38 |
16.02 |
TBC |
|
Air Consumption(NI/cycle) |
15 |
47 |
47 |
|
Repeatability(mm) |
±0.05 |
±0.1 |
±0.1 |
|
Weight(kg) |
1761 |
2066 |
TBC |
Understanding Basic Dimensions of the Molding Machine Robot
Application Scenarios
Automotive Manufacturing
Automotive interior trims, instrument panels, door panels and related components
Home Appliance Industry
Air conditioner casings, washing machine inner tubs, deep-drawn housings, etc.
Electronics Industry
Large enclosures including TV rear covers and monitor bezels
Daily Goods & Packaging
Large containers, trash bins, turnover boxes and similar products
