Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of injection robot in China. With abundant experience, we warmly welcome you to buy durable injection robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Injection Robot

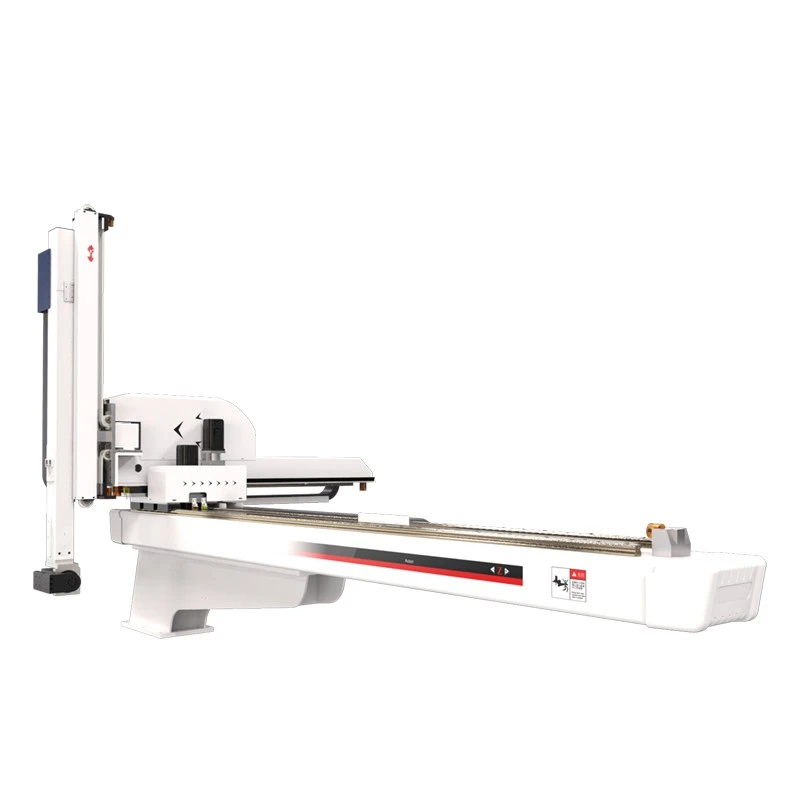

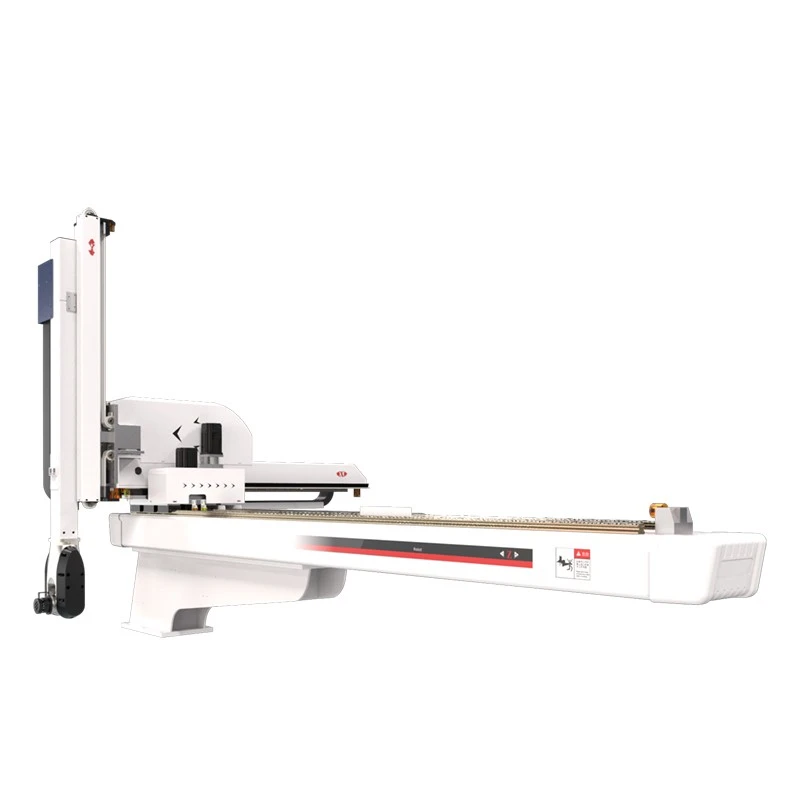

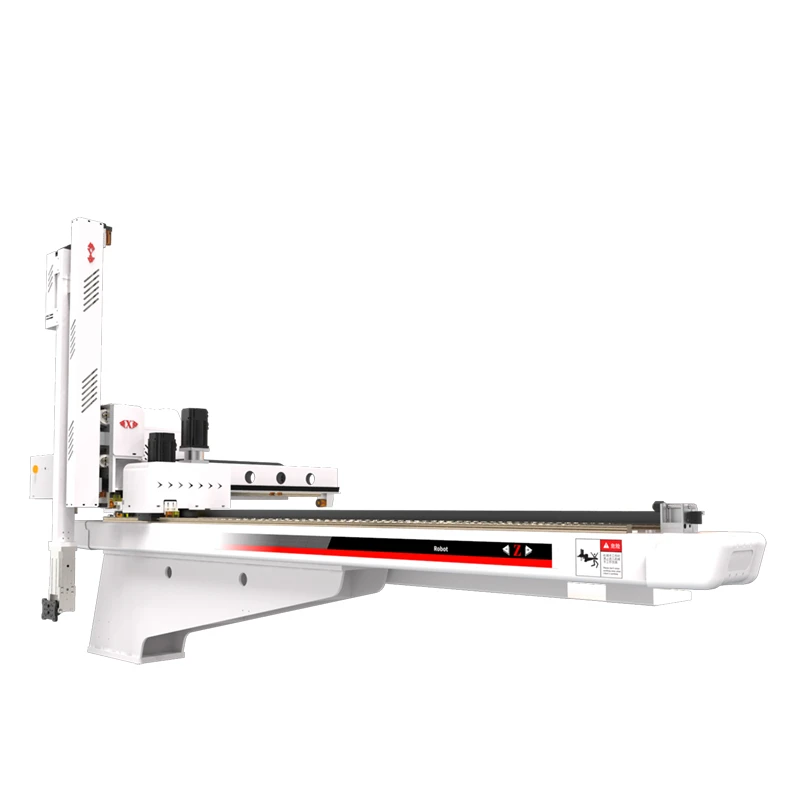

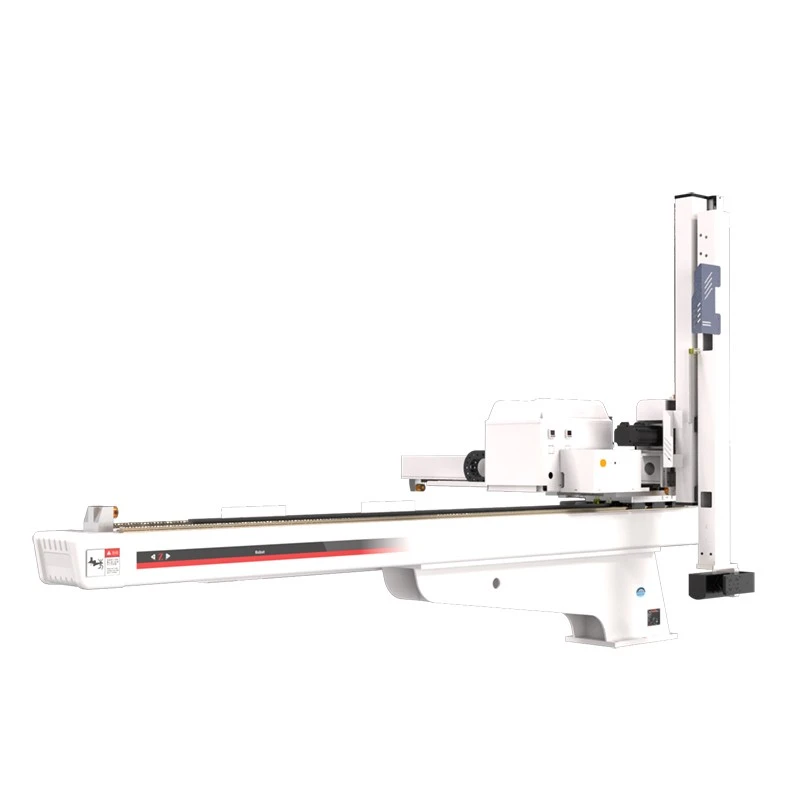

The injection robot is a servo manipulator designed for stable part picking and product protection. As molded plastic parts remain partially cooled immediately after mold opening, the manipulator gently extracts finished parts via its end effector and places them at designated positions. It prevents scratches, deformation, and contamination caused by manual operation, effectively improving yield.
Compatible with 250T–800T Injection Molding Machines
Compatible with injection molding machines ranging from 250T to 800T, this injection robot accommodates various machine models to simplify model selection, reduces procurement costs for multiple equipment specifications, and enhances flexibility of production line deployment.
Stroke for Multi-station Pick and Place
Featuring a traverse stroke from 1700 mm to 2260 mm, the injection robot supports automatic pick-and-place across multiple stations and adapts to diverse workshop layouts. After extracting parts from molds, it can directly connect to conveyor lines or designated stacking zones, enabling integrated automated operations of picking, transferring, and discharging. It eliminates intermediate manual handling, improves continuous production efficiency, and enhances line coordination.
Understanding Injection Robot Parameters
|
Model |
BRTNN11WSS3P/F |
BRTNN15WSS4P/F |
BRTNN15WSS5P/F |
|
Power Source(kVA) |
2.59 |
3.18 |
3.23 |
|
Recommended I.M.M(ton) |
250T–480T |
470-800T |
470-800T |
|
Drive Method |
AC Servo motor |
AC Servo motor |
AC Servo motor |
|
Model of EOAT |
Two suctions Two fixtures |
Two suctions Two fixtures |
Two suctions Two fixtures |
|
Traverse Stroke(mm) |
1700 |
2260 |
2260 |
|
Crosswise Stroke(mm) |
700 |
900 |
900 |
|
Vertical Stroke(mm) |
1100 |
1500 |
1500 |
|
Max.Payload(kg) |
10 |
15 |
15 |
|
Dry Take Out Time(sec) |
1.63 |
2.74 |
3.73 |
|
Dry Cycle Time(sec) |
6.15 |
9.03 |
11.23 |
|
Air Consumption(NI/cycle) |
3.2 |
3.2 |
3.2 |
|
Repeatability(mm) |
±0.05 |
±0.1 |
±0.1 |
|
Weight(kg) |
261 |
500 |
500 |

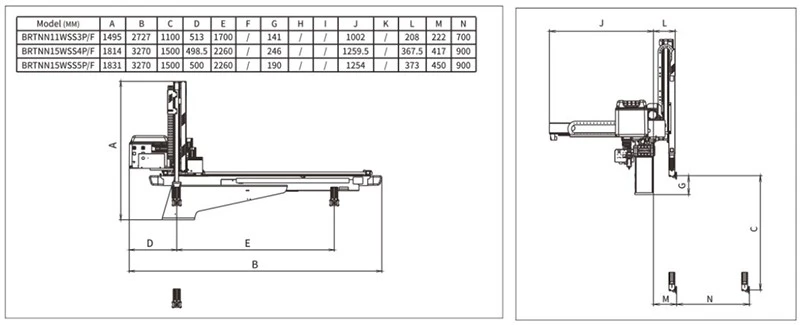

Basic Dimension Drawing of Injection Robot
Differences Between Injection Robot and Industrial Robot
|
Item |
Injection Robot |
Industrial Robot |
|
Structure Type |
Cartesian coordinate structure |
Articulated structure |
|
Primary Application |
Extraction of injection-molded parts |
General-purpose automation |
|
Extraction Speed |
Optimized for high-speed molding cycle to shorten mold-open waiting time |
Complicated motion path with slower cycle takt time |
|
Mounting Method |
Top-mounted on injection molding machine |
Floor-mounted installation |
|
Initial Investment |
More cost-effective; suitable for high-volume repetitive extraction tasks |
Higher cost; better suited for complex, flexible processes |
|
Application Scenarios |
Part extraction, sprue separation, automatic stacking and other high-cycle molding production |
Trimming, polishing, assembly, and other complex post-molding processes |
If your production goal is high-speed extraction, shortened injection molding cycle times, reduced labor costs, and stable 24/7 automated production, an injection robot is a more efficient and cost-effective choice. If you need to perform complex post-processing tasks, coordinated multi-station operations, or flexible manufacturing, an industrial robot offers greater flexibility.
