Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of robots for injection molding in China. With abundant experience, we warmly welcome you to buy durable robots for injection molding in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Robot for Injection Molding

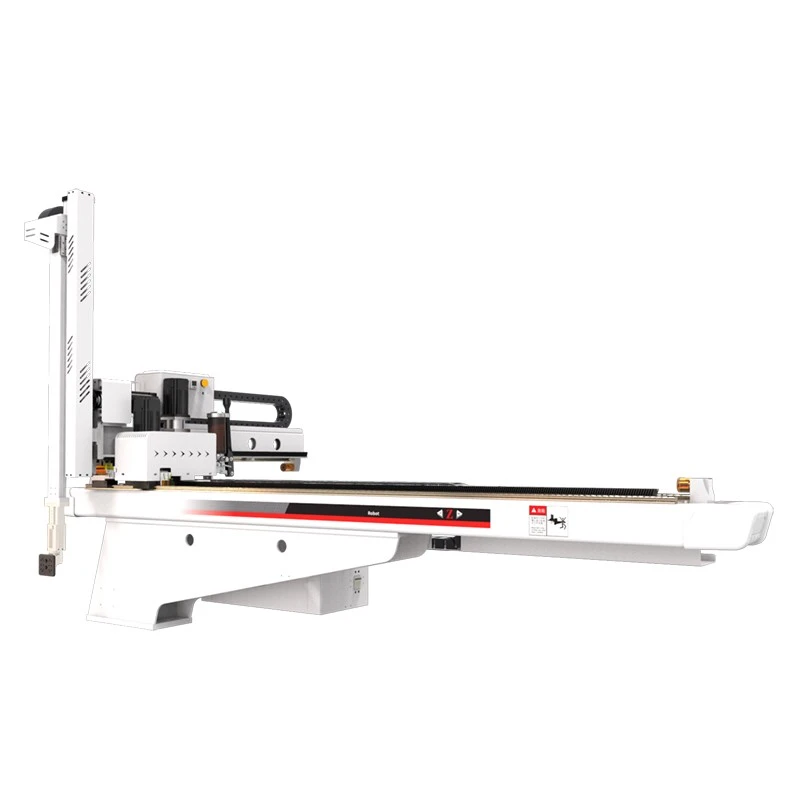

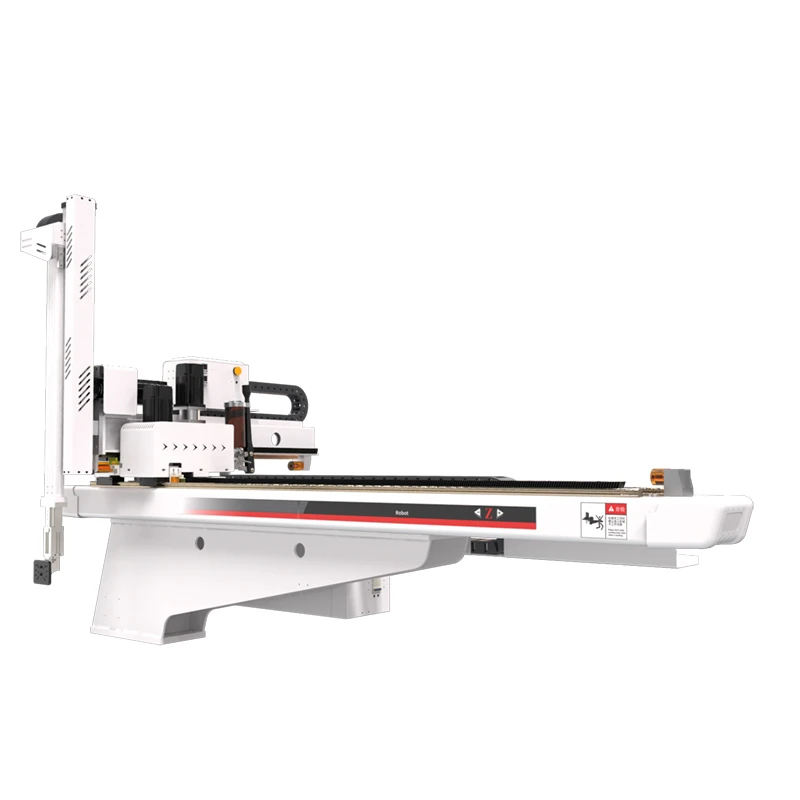

This 3-axis servo manipulator is engineered for automatic part picking and sprue removal after injection molding. After part extraction, this robot for injection molding automatically separates finished products from sprue waste for sorting and recycling, making it suitable for continuous injection molding production lines.
Continuous Operation with Short Cycle Time
Our robot for injection molding achieves a take-out time as fast as 0.68 s and a full cycle time as short as 4.07 s. It sequentially completes demolding, part dropping, and homing operations, making it perfectly suited for high-cycle manufacturing of disposable food containers, thin-wall packaging, and electronic plastic components.
High-Precision Stable Part Extraction
With positional repeatability of up to ±0.05 mm, the robot delivers consistent gripping positioning and lowers risks of part dropping, shifting, or surface scratching. It is ideal for producing precision electronic parts, small plastic pieces, and cosmetic packaging components that demand stable picking performance.

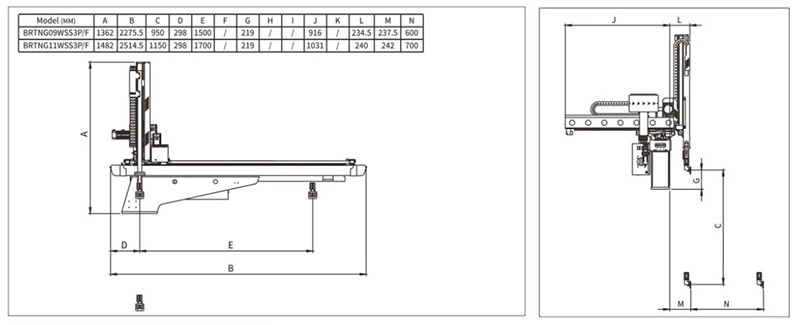

Understanding Basic Dimensions of the Robot for Injection Molding
Understanding Robot for Injection Molding Parameters
|
Model |
BRTNG09WSS3P/F |
BRTNG11WSS3P/F |
|
Power Source(kVA) |
3.23 |
5.38 |
|
Recommended(ton) |
160T–380T |
250-480T |
|
Drive Type |
AC Servo Motor |
AC Servo Motor |
|
Fixture Configuration |
Two suctions Two fixtures |
Two suctions Two fixtures |
|
Traverse Stroke(mm) |
1500 |
1700 |
|
Crosswise Stroke(mm) |
600 |
700 |
|
Vertical Stroke(mm) |
950 |
1150 |
|
Max.loading(kg) |
2 |
2 |
|
Dry Take Out Time(sec) |
0.68 |
0.68 |
|
Dry Cycle Time(sec) |
4.07 |
4.07 |
|
Air Consumption(NI/cycle) |
3.2 |
3.2 |
|
Repeatability(mm) |
±0.05 |
±0.05 |
|
Weight(kg) |
300 |
330 |
Schematic Diagram of Overhead-mounted Robot for Injection Molding
