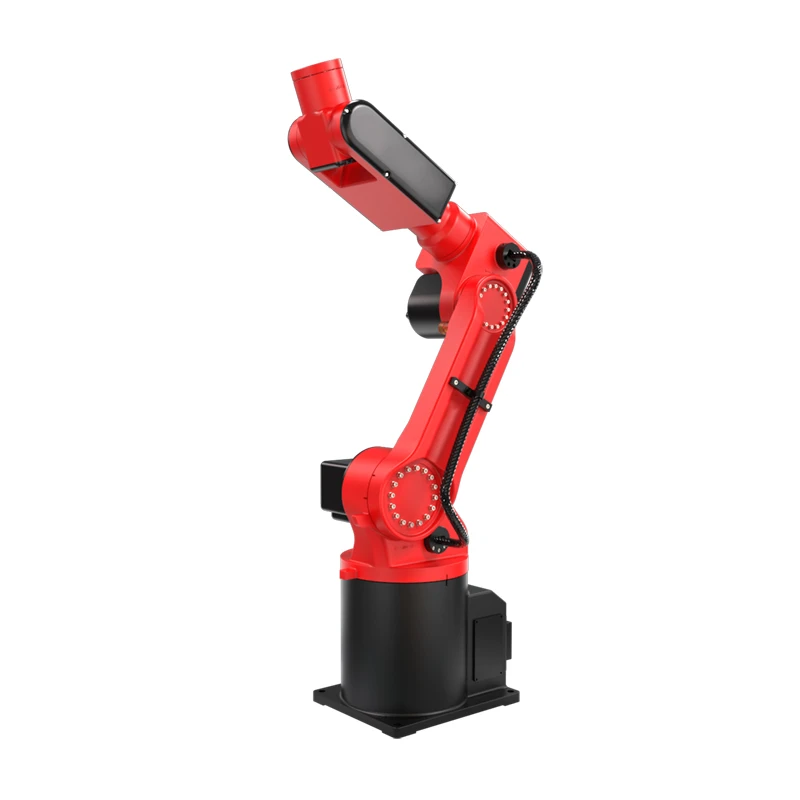

Robotic Picking Arm

Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of robotic picking arm in China. With abundant experience, we warmly welcome you to buy durable robotic picking arm in stock here from our factory. All custom made products are with high quality and competitive price.

The robotic picking arm is a 6-axis robot specially designed for high-speed pick-and-place operations. As a key link in production cycle control, it can perform automated actions such as picking, transferring, positioning, and placing in cycles. It can replace manual handling of high-temperature materials and other hazardous working conditions, effectively reducing the risk of work-related injuries.

This robotic picking arm adopts a 6-axis high-speed linkage design. The maximum speed of the J5 axis reaches 600°/s, and the J6 axis reaches 588°/s, enabling rapid completion of picking, flipping, and positioning actions. With fast end response, it effectively shortens the cycle time of loading and unloading, making it suitable for high-speed automated production scenarios such as injection molding part removal, stamping loading/unloading, and electronic assembly.

The robotic picking arm features a repeat positioning accuracy of ±0.05 mm, ensuring stable and consistent picking and placing. Compared with manual handling, it effectively reduces issues such as product scratches, deformation, parts dropping, and positioning deviations, helping to improve product consistency and lower production losses.

Scenario 1: Vision-Guided Automated Loading/Unloading for Pouch Batteries

A new energy battery factory in Southeast Asia needed to automate the loading and unloading process for pouch battery manufacturing. Traditional manual handling often caused scratches, crush damage, and surface contamination to the batteries, while manual positioning also often led to picking errors.



Our robotic picking arm, paired with flexible vacuum suction grippers, enables low-contact pick-and-place of pouch batteries, minimizing the risk of surface damage. Integrated with 2D vision positioning, the system automatically identifies the position and angle of the pouch batteries on the material platform, guiding the robot to pick accurately and compensating for tray placement deviations. The robot picks the batteries from the material frame, transfers them to the processing station, and after crimping and laser marking, places the finished batteries onto the output platform, realizing fully automated inline loading/unloading production.



By reducing human contact, this solution lowers the risk of positioning errors, improves the yield rate and production efficiency of pouch battery processing, and supports continuous, high-consistency manufacturing in the new energy industry.

Scenario 2: Automated Loading/Unloading for Tapping Machines

A metal parts factory in South America required automated loading and unloading for its thread processing line. Manual placement of workpieces often caused tap offset, affecting the consistency of thread processing. Additionally, manual operation during tapping posed safety risks due to splashing metal chips and cutting fluid.



This project uses a 6-axis robotic picking arm equipped with custom pneumatic fingers, which works in tandem with the tapping machine to achieve automated loading and unloading. The robot picks workpieces from the chain conveyor, precisely places them into the tapping machine station, and upon completion, removes the finished parts and transfers them to the material frame.



The solution replaces manual labor in dangerous and repetitive loading/unloading tasks, enhancing the continuous operation capability of the tapping process and meeting the demand for mass thread processing of metal parts.
