Small Pick and Place Robot

Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of small pick and place robot in China. With abundant experience, we warmly welcome you to buy durable small pick and place robot in stock here from our factory. All custom made products are with high quality and competitive price.

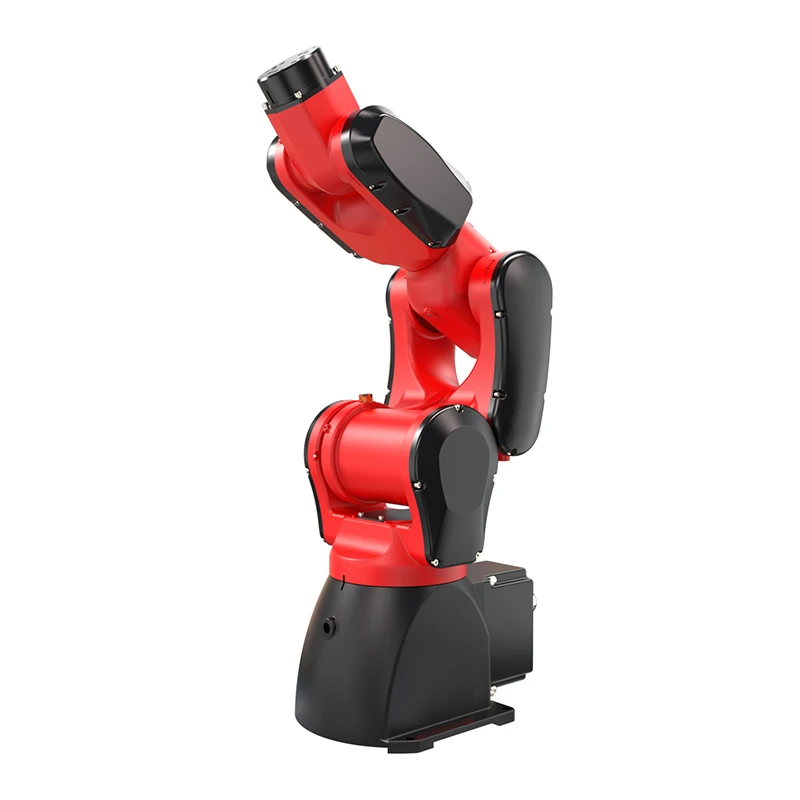

This small pick-and-place robot is a six-axis robot that replaces manual repetitive operations. It performs continuous and repetitive loading, unloading and handling work in production processes, and completes precise alignment and high-speed transfer of small parts and components.

The small pick-and-place robot features a repeat positioning accuracy of ±0.06 mm. It can stably grip precision electronic components and small hardware parts, and reduce product scratches and positioning errors caused by manual operation.

This small pick-and-place robot adopts a six-axis linkage design. Its J6 axis enables ±360° rotation. The multi-axis cooperation of this robot realizes flexible flipping, side picking, inclined grabbing and other movements. It stably completes loading, unloading and precision assembly operations according to preset motion trajectories.

Scenario 1: Dual-Robot Collaborative Loading and Unloading for Screen Printing

The small pick-and-place robots are applied to realize fully automatic continuous loading and unloading for the screen printing process of small plastic buckets at a daily chemical packaging manufacturer in Southeast Asia. Manual feeding often causes displacement of buckets, resulting in distorted printed patterns and product rejection. This solution adopts two sets of small pick-and-place robots for collaborative operation to automate loading and unloading of screen printing equipment. One robot grabs plastic buckets from the material table and places them accurately at the screen printing station with the aid of positioning fixtures. After screen printing is finished, the other one takes out finished products and transfers them to the subsequent drying station. The coordination of two robots enables automatic linkage of feeding, printing and discharging. It reduces manual intervention in loading and unloading, lowers the rejection rate caused by printing misalignment, and realizes continuous screen printing production for plastic buckets.

Scenario 2: Loading and Unloading for Motor Rotor Winding

A European motor component manufacturer requires automatic loading and unloading for motor rotor winding. Manual placement of rotors easily leads to winding position deviation and inconsistent winding quality, which impairs motor performance. In addition, high-speed winding equipment poses pinching hazards to on-site workers. Our small pick-and-place robot replaces manual close-range operation to complete loading and unloading for rotor winding, and cuts down safety risks from contact with high-speed equipment. Equipped with dual-station parallel pneumatic grippers, it can pre-grab raw rotors for standby. This robot completes finished product discharging and raw material feeding in one single movement to minimize equipment idle time and support continuous winding production of motor rotors.
