Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of high speed pick and place robot in China. With abundant experience, we warmly welcome you to buy durable high speed pick and place robot in stock here from our factory. All custom made products are with high quality and competitive price.

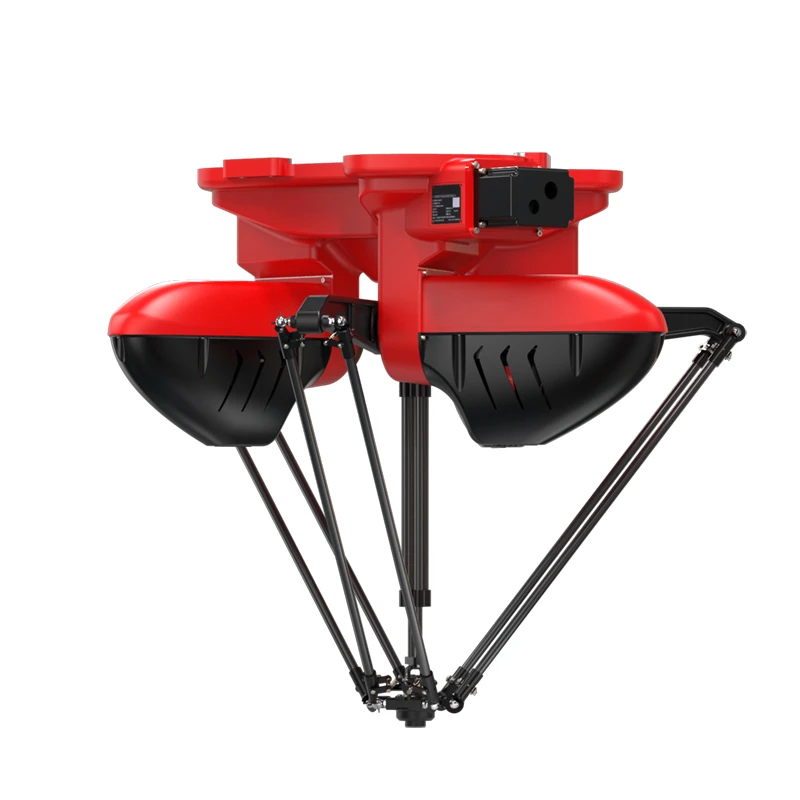

Learn About High Speed Pick and Place Robot
The high-speed pick-and-place robot is an automated execution unit that connects different pieces of equipment. It links various processes through automatic identification, precise picking, and fixed-point placement. Compared with manual handling, automated picking reduces time waste in material transfer, supports 24/7 continuous operation, improves equipment utilization, lowers production costs, and delivers a higher return on investment for enterprises.
Parallel Structure Design
This high-speed pick-and-place robot adopts a parallel kinematic structure with a dual-drive linkage on the active arm. The end-effector J4 axis achieves 150 times/min, enabling high-speed response. Compared with articulated manipulators or manual picking, the parallel configuration offers shorter motion paths, lower inertia, and faster acceleration/deceleration, making it better suited for high-speed, high-frequency, light-load automated production. This design reduces cycle time, minimizes missed picks and downtime, and enhances continuous production stability.
Accurate Picking & Stable Assembly
Our high-speed parallel robot achieves a positional repeatability of ±0.1 mm and an angular repeatability of ±0.5°. Even during high-speed continuous operation, it maintains stable and precise pick-and-place motions. It effectively eliminates workpiece misalignment, missed picks, and assembly errors, improving product assembly consistency and first-pass yield. It is suitable for high-precision applications such as electronic component assembly, food handling, pharmaceutical sorting, and hardware parts feeding.
Understanding High Speed Pick and Place Robot Parameters
|
Model |
BRTIRPL1003A |
||
|
Item |
Range |
Cycle Time(times/min) |
|
|
Active Arm |
Upward Swing |
46.7° |
Stroke:25/305/25(mm) |
|
Downward Swing |
86.6° |
||
|
Wrist |
J4 |
±360° |
150 times/min |
|
Arm Length |
1000mm |
||
|
Loading Ability |
3kg |
||
|
Position Repeatability |
±0.1mm |
||
|
Angular Repeatability |
±0.5° |
||
|
Max Allowable Load Moment of Inertia |
0.01 kg·㎡ |
||
|
Power Source |
3.18kVA |
||
|
Weight |
104kg |
||
|
System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Lead time |
Standard robots are in stock for fast delivery. Customized equipment has a lead time of 30 to 60 days. |
||
Understanding Basic Dimensions of High-Speed Pick-and-Place Robot
Application Scenarios
Small, Lightweight Discrete Parts Assembly
Automatic picking and assembly of electronic components, plastic parts, and small hardware. Shortens cycle time, improves consistency, and reduces missed or faulty assemblies.
01
High-Speed Vision-Guided Sorting
Vision-integrated for real-time recognition of orientation, color, and position, enabling dynamic pick-and-place.
02
Food Packaging Pick-and-Place
High-speed cartoning and tray packing of biscuits, candies, bread, and pre-packaged foods. Minimizes human contact, improving hygiene standards and throughput.
03
Pharmaceutical Product Sorting
High-speed sorting and packaging of bottle caps, medicine boxes, and pouch-packed products. Supports automatic pick-and-place in cleanroom environments.
04
Daily Chemical Products Case Packing
Rapid case packing and palletizing of toothpaste, soap, and small bottled products. Quick changeover adaptable to multi-SKU production.
05
FAQ
Q1: What are the advantages of the high-speed pick-and-place robot compared to manual operation?
Compared with manual operation, the high-speed pick-and-place robot offers precise positioning, stable operation, and supports 24/7 continuous production. One unit can replace 1–3 workers per shift, independently performing processes such as repetitive picking, precision assembly, and high-speed sorting. It effectively reduces labor costs and improves production line productivity and operational efficiency.
Q2: Can the high-speed pick-and-place robot be equipped with a vision system?
Yes. This robot can be integrated with industrial cameras and visual recognition systems to automatically identify the position and orientation of workpieces and perform dynamic picking. It enables operations such as material positioning, defect detection, orientation recognition, and automatic sorting of multiple SKUs.
