Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of palletizing cobot in China. With abundant experience, we warmly welcome you to buy durable palletizing cobot in stock here from our factory. All custom made products are with high quality and competitive price.

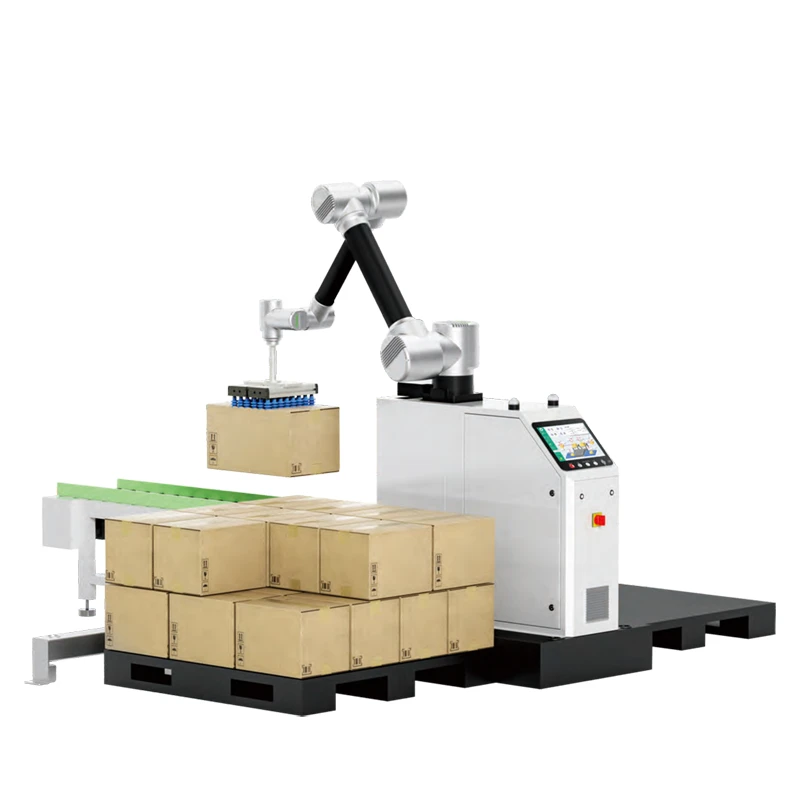

Learn About Palletizing Cobot
Integrating a collaborative robot arm with an automatic palletizing system, the palletizing cobot automatically completes grabbing, stacking, and palletizing of cartons, bagged materials, and pail products.
Equipped with laser radar and safety detection functions, the robot automatically slows down or halts when workers enter the restricted area, making it ideal for human-robot collaborative palletizing.
30 kg Payload Capacity
With a rated payload of 30 kg, this palletizing cobot is compatible with regular packaging including cartons, woven sacks, and pail goods to meet palletizing requirements in food, construction materials, chemical, and logistics industries.
High-Rack Stacking Capacity
With a 1900 mm maximum working radius and an integrated lifting mechanism, its maximum stacking height reaches 2600 mm, supporting high-position stacking of cartons, bags, and pails for multi-layer palletizing and high-rack storage.
Stable Continuous Palletizing
With a repeat positioning accuracy of ±0.04 mm, it ensures consistent pick-and-place positioning for uniform stacking; maximum palletizing speed is up to 9 pcs/min for continuous packaging and automatic palletizing production.
Understanding Palletizing Cobot Parameters
|
Model |
BRTMD163001A |
|
Payload |
30kg |
|
Working Radius |
1900mm |
|
Palletizing Height |
Max.: 2600mm |
|
Palletizing Speed |
＜9pcs/min |
|
Repeatability |
±0.04mm |
|
Communication mode |
TCP/IP |
|
IP Level |
IP54 |
|
Temperature Range |
0-55℃ |
|
Maximum Power Consumption |
3.5kw |
|
ower Supply |
Single Phase 220V/50HZ |
|
Weight |
350kg |
|
Floor Space |
1505*1716mm |
|
Operational Footprint |
3150*1716mm |
|
Minimum Required Ceiling Height |
3.2m |

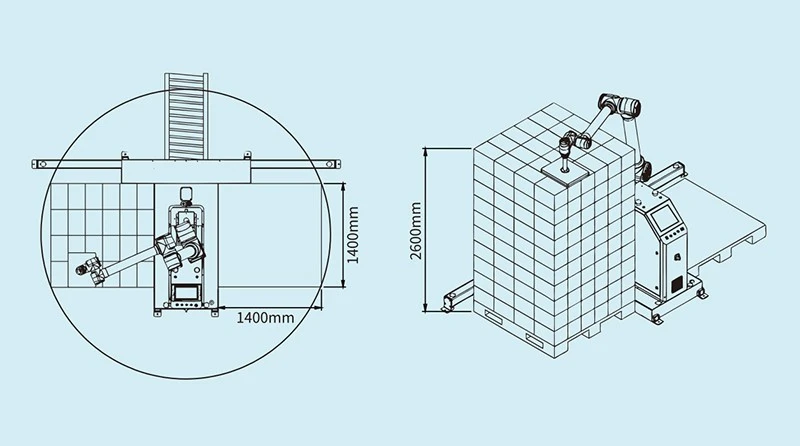

Understanding Basic Dimensions of the Palletizing Cobot
Why Choose the Palletizing Cobot
|
Type |
Palletizing Cobot |
Manual Palletizing |
Industrial Palletizing Robot |
|
Safety and Collaboration |
Allows direct human-robot collaboration |
Operators carry goods manually |
Requires safety guarding fences |
|
Deployment Cycle |
Short deployment period |
No deployment needed |
Long integration and setup cycle |
|
Palletizing Consistency |
Excellent |
Fluctuates with worker condition |
Excellent |
|
Production Stability |
Enables long-hour non-stop operation |
Affected by fatigue and shift changes |
Enables long-hour non-stop operation |
|
Product Changeover Flexibility |
Fast program-based product switching |
Highly flexible for varied goods |
Requires reprogramming and commissioning |
Balancing the flexibility of manual stacking and the continuous running performance of automated machinery, the palletizing cobot enables quick format switching via programming. As a versatile palletizing solution, they are widely applied in food packaging, personal care and household products, warehouse logistics and e-commerce distribution industries.
Application Industries
Food & Beverage Industry
High-speed & stable palletizing for cartons and bottled beverages
Daily Chemical Industry
Palletizing for laundry detergent and all kinds of boxed goods
Chemical Industry
Automatic palletizing for bagged raw materials and pail-packed products
Logistics & Warehousing Industry
Automatic stacking and neat pallet arrangement for outbound goods
