Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of machine tending cobot in China. With abundant experience, we warmly welcome you to buy durable machine tending cobot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About Machine Tending Cobot

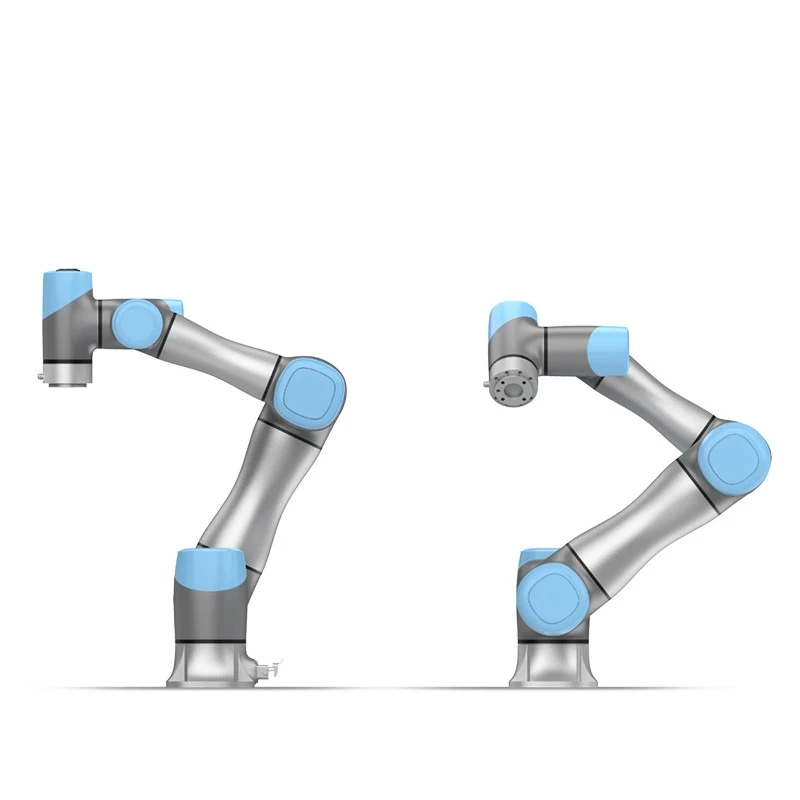

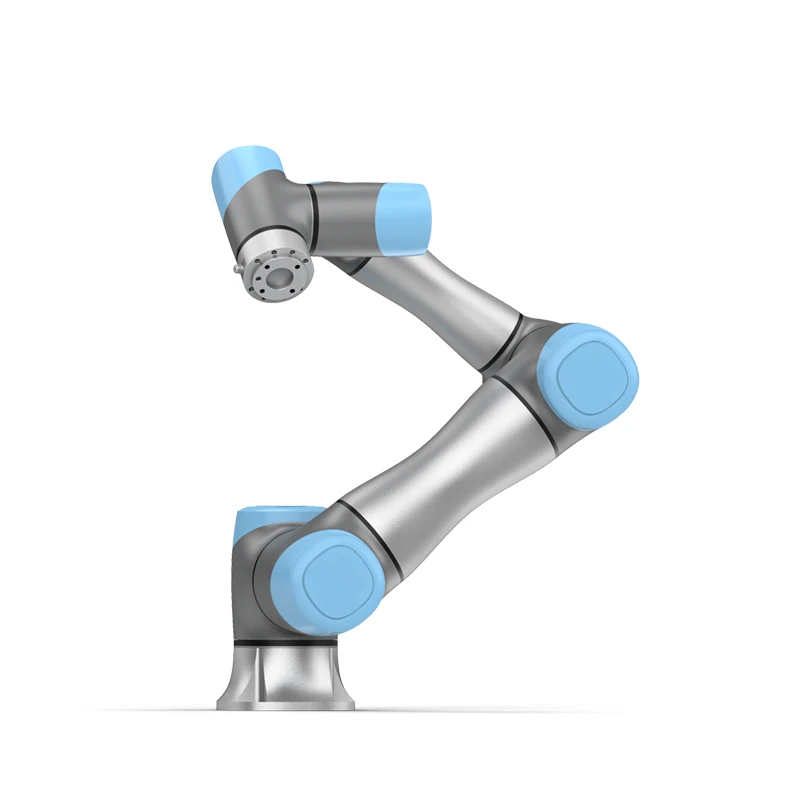

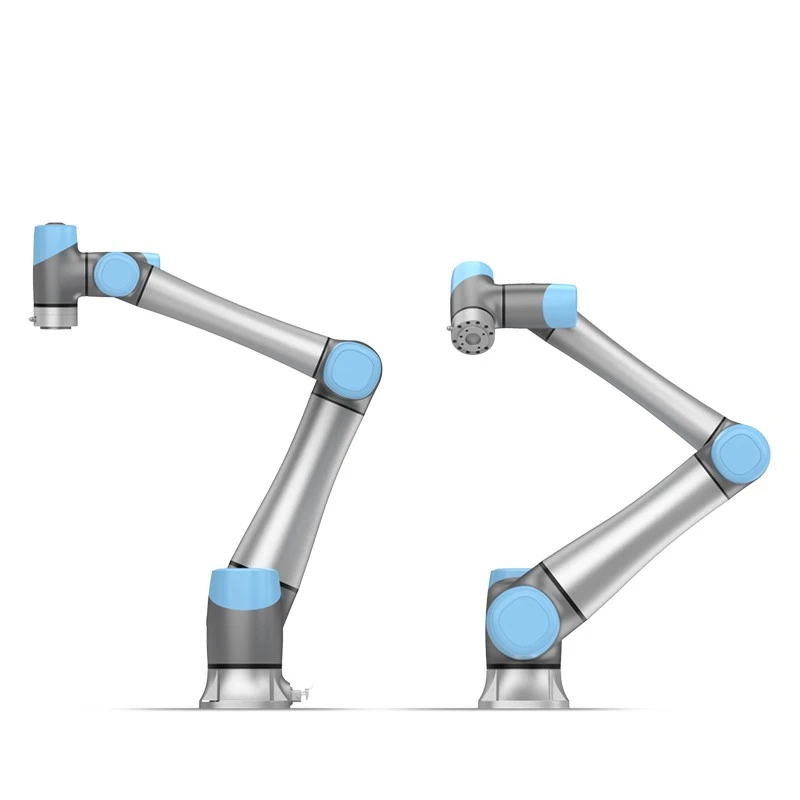

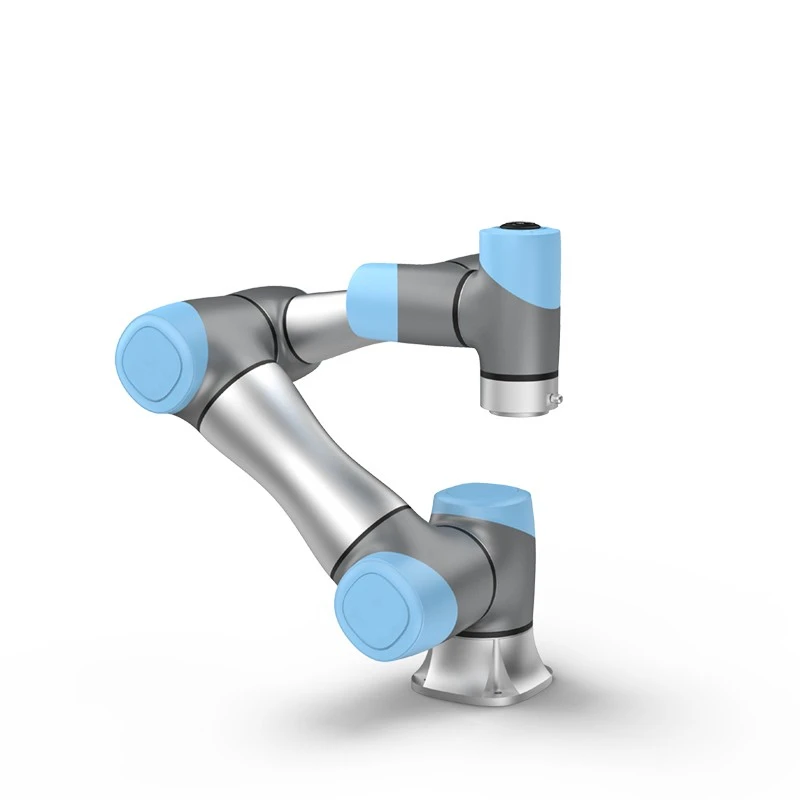

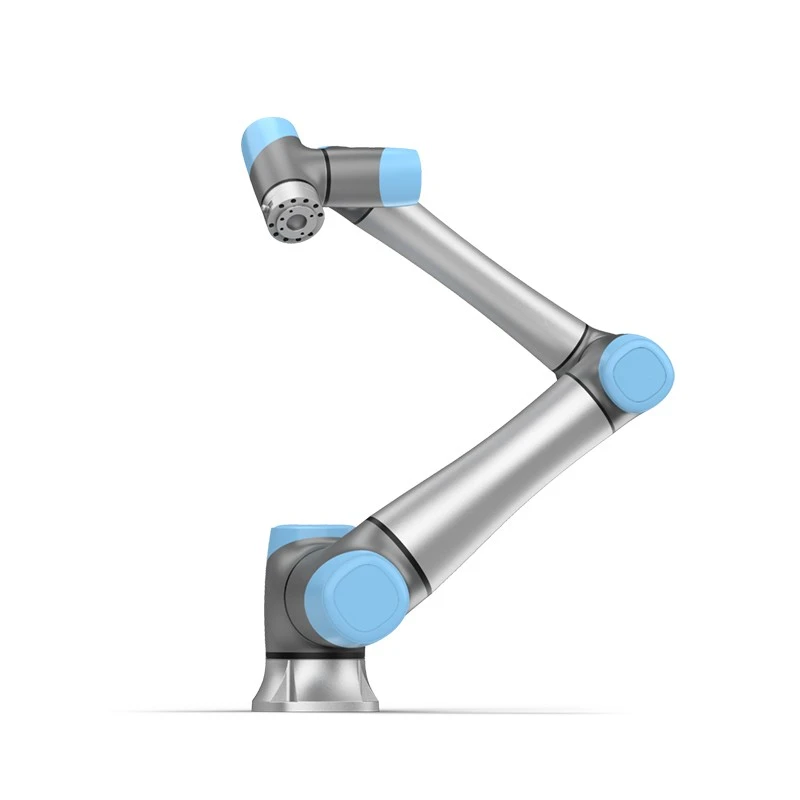

This machine tending cobot completes automated tasks including workpiece gripping, loading, unloading, handling and flipping. It works in tandem with CNC machining centers, lathes, punch presses, injection molding machines and other production equipment.
Compared with conventional industrial robots, this cobot comes with built-in collision detection, force sensing and safe stop functions to operate safely alongside human workers at close range. No large safety guarding fences are required, saving floor space. It is ideal for space-restricted machining workshops and automated CNC loading and unloading applications.
Understanding Robot for Machine Tending Cobot Parameters
|
Model |
RBTE07M0807W |
RBTE12M1212W |
|
Weight |
24.5kg |
39.5kg |
|
Max.loading |
7kg |
12kg |
|
Working Radius |
800mm |
1200mm |
|
Maximum Linear Speed |
2m/s |
2m/s |
|
Joint Range of Motion |
J3：±160°(Other Joints±360°) |
J3：±160°(Other Joints±360°) |
|
Maximum Linear Speed |
J1/J2:180°/s J3:223°/s J4/J5：223°/s |
J1/J2:180°/s J3:223°/s J4/J5：223°/s |
|
Terminal IO |
DI(2 channels)/DO(2 channels)/AI(2 channels multiple with RS485) |
DI(2 channles)/DO(2 channels)/AI(2 channels multiple with RS485) |
|
Repeatability |
±0.02mm |
±0.03mm |
|
IP Level |
±IP54 |
±IP54 |
|
Temperature Range |
0-50℃ |
0-50℃ |
|
Typical Power Consumption |
150W |
350W |
|
Installation Method |
any Angle |
any Angel |
|
Length of cable between the body and the electrical cabinet |
5m |
5m |
|
Material |
Aluminum alloy,ABS plastic |
Aluminum alloy,ABS plastic |
Understanding Basic Dimensions of the Machine Tending Cobot
Core Advantages
- Safe Human-Robot Collaboration
- High Repeat Positioning Accuracy
- Supports Hand-Guided Teaching
- Compact Installation for Narrow Space
- Flexible Production Changeover
Automatic CNC Loading and Unloading Workflow of Machine Tending Cobot
Step 1: Workpiece Gripping
The cobot automatically picks raw workpieces from material trays, turnover boxes or conveyor lines.
Step 2: Automatic Loading
Via I/O signal communication, the cobot triggers the machine tool door to open and precisely places the workpiece onto the fixture.
Step 3: Automatic CNC Machining
The CNC machine performs turning, milling, drilling and other machining processes automatically, while the cobot stands by for the machining completion signal.
Step 4: Automatic Unloading
The cobot takes out finished workpieces and transfers them to turnover boxes, conveyors or downstream stations.
Step 5: Continuous Cyclic Production
The system automatically starts the next loading and unloading cycle to enable uninterrupted production and boost machine utilization.
Application Industries
Auto Parts Manufacturing
Automatic loading, unloading and handling for engine housings, flange parts, gears and shaft components.
Electronic Components Manufacturing
Automated feeding and production transfer for connectors, metal housings and precision structural parts.
New Energy Industry
Automatic loading and unloading for battery casings, aluminum profiles and new-energy structural parts.
Hardware Machining
Automated feeding for machined aluminum, steel, shaft sleeve and flange workpieces.
