Product Overview

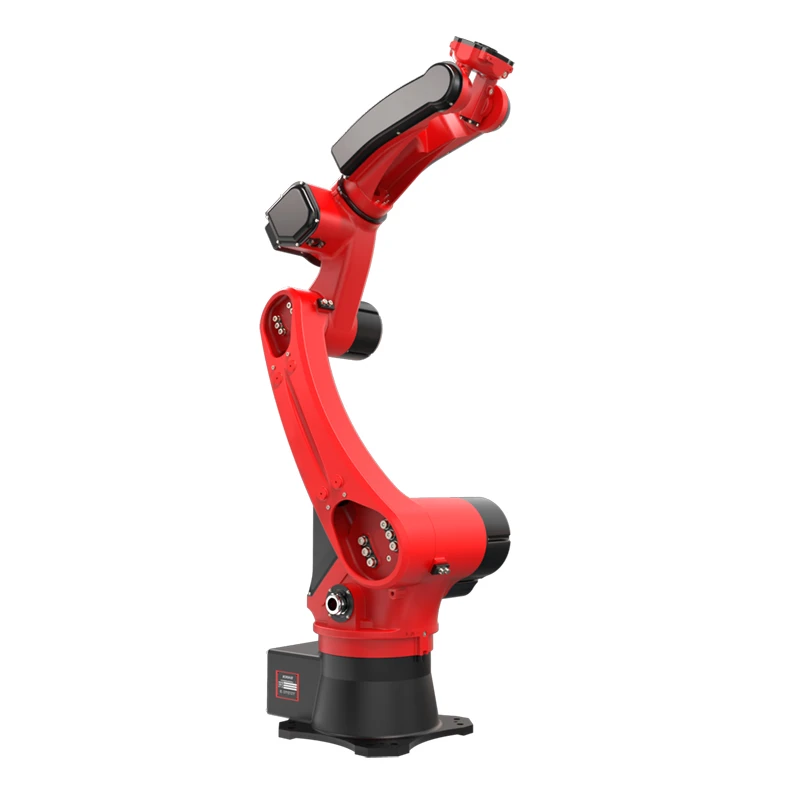

This welding industrial robot was developed in-house by RBTIC for automated welding applications. Adopting a hollow wrist structure, it enables easier internal wiring and more flexible movement to meet multi-angle welding requirements and reduce blind welding areas.
Matched with welding machine, positioner, tooling fixtures and other equipment, it can form a complete robotic welding workstation, delivering high-quality and high-efficiency customized automated welding solutions for customers.
Core Benefits
Repeatability - ±0.05 mm
Pose repeatability of ±0.05 mm is one twentieth of a millimetre, tighter than a 0.07 mm human hair, and holds insertion, dispensing, and screwdriving inside a 0.1 mm total tolerance band. Fewer rejects mean fewer rework hours per shift. The figure is measured per ISO 9283 pose repeatability method and recorded in the unit's test report.
Power draw - 4.64 kVA
Total connected load is 4.64 kVA - roughly 7 A on a 380 V three-phase supply - so the cell ties into an existing 16 A breaker with headroom for the controller, vision, and conveyor. You skip the transformer upgrade and the switchgear rework that a heavier robot would trigger. 4.64 kVA is the rated input capacity on the nameplate.
Mass - 166 kg
At about 166 kg, the robot is liftable by a 500 kg pallet truck and two operators, and its static load sits well under a standard 5 kN/m² industrial floor rating - no reinforced foundation, no crane rental on install day. Relocating the cell between lines becomes a half-day job. Mass is stated for the manipulator only, excluding controller and cables.
Technical Parameters
|
Model |
BRTIRWD1506A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±165° |
163°/s |
|
J2 |
-100°/+70° |
149°/s |
|
|
J3 |
±80° |
223°/s |
|
|
Wrist |
J4 |
±150° |
169°/s |
|
J5 |
±110° |
270°/s |
|
|
J6 |
±360° |
398°/s |
|
|
Arm Length |
1647mm |
||
|
Loading Ability |
6kg |
||
|
Repeatability |
±0.05mm |
||
|
Power Source |
4.64kVA |
||
|
Weight |
About 166kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
| Mounting Method | Floor mounting, side mounting; height riser base optional | ||
| Welding Processes Supported | Arc welding (MIG/MAG/TIG), spot welding | ||
Work Envelope Drawing
welding Applications
Tanks, Vessels and Pipe-to-Flange Joints
Circumferential seams reward a wrist that can rotate continuously and a positioner that can turn the work under a stationary torch. With ±360° J6 rotation and a headstock/tailstock positioner, a full 360° seam can be completed as a controlled, continuous operation rather than a sequence of repositioning steps.
Metal Furniture and Thin-Sheet Products
Thin material punishes heat input errors: distortion and burn-through appear immediately and are expensive to correct. Configuration priorities shift to a pulse-capable power source and precise, repeatable torch positioning, where the ±0.05 mm repeatability of the BRTIRWD1506A is directly relevant.
Electrical Cabinets and Enclosures
Enclosure welds are usually visible in the finished product, so appearance and low spatter matter as much as strength - every extra minute of grinding is margin lost. Programmed, low-heat-input parameters produce a consistent bead that reduces downstream finishing work across an entire batch.
Want to explore more robots?
Our robotic arms feature various reaches to accommodate different welding and fabrication tasks. Click below to check full specifications.
RBTIC Robot Welding Cell Configuration List
The RBTIC BRTIRWD1506A welding industrial robot can be supplied as a complete robotic welding solution rather than components. The standard package comprises the six-axis welding manipulator, a matched welding power source, wire feeder, welding torch, wire spool and gas pressure regulator - the full set required to strike a production arc. Around that core, RBTIC engineers the parts of the cell that are specific to your work.
Welding Power & Consumable Systems
Welding Power Source
Automatic Wire Feeder
Air-Cooled Welding Torche
Water-Cooled Welding Torche
Wire Spool
Gas Pressure Regulator
Tooling & Positioning Systems
Single-Axis Positioner
Double-Axis Positioner
U-Type Positioner
Pneumatic Clamping Fixture
Hydraulic Welding Fixture
Custom Workpiece Positioning Jigs
Intelligent Vision & Sensing Systems
2D Laser Seam Finding System
3D Vision Camera
Weld Seam Tracking Sensor
Post-Weld Inspection Camera
Automation Support Equipment
7th Axis Linear Track
Automatic Nozzle Cleaning Station
Welding Fume Purifier
Industrial Water Chiller
PLC Control Cabinet
Safety Fencing
Conveyor Line
Core System Configuration & Functions of welding industrial robot Workstation
| System Category | Core Function |
|---|---|
| Tooling & Positioning System | Achieve accurate clamping, positioning and posture adjustment of workpieces. Maintain stable workpiece position during welding and match the reach of welding robots. It is the foundation to guarantee welding precision and consistency. |
| Intelligent Vision & Sensing System | Realize precise seam identification, real-time seam tracking and post-weld inspection. Compensate for workpiece clamping errors and robot positioning deviations to avoid weld seam offset, ensuring consistent welding quality. |
| Automation Support System | Extend the working range of robots, sustain stable continuous welding, meet safety production and environmental compliance requirements, and form a closed-loop automatic workstation to boost productivity and compliance. |
How to Configure Your Robotic Welding Workstation
Scenario: Small-batch production, single workstation, standardized workpieces
Recommendation: Secure basic welding functions, workpiece clamping & positioning, and safe operation. Achieve robot-based replacement of manual welding at minimized cost to meet flexible small-batch production demands.
Scenario: Mass production, multi-workstation, high-precision requirements
Recommendation: Prioritize welding precision, consistency and continuous production capacity. Adopt vision sensing systems to compensate for workpiece errors, equipped with basic automation components to steadily fulfill quality and efficiency targets for mass production.
Ready to build your robotic welding workstation? Send us your requirements to receive a free customized solution.
About RBTIC
Robot Welding System Supplier
Robotic Technology (GD) Co., Ltd. is a trusted industrial welding robot manufacturer and automation solutions provider in China. We provide one-stop automation services and deliver tailor-made robotic welding solutions to address the shortage of skilled welders and replace manual welding. With a repeatability accuracy of ±0.05 mm, our systems ensure superior welding consistency, significantly reducing rework and material waste.
Quality Assurance
RBTIC maintains strict quality control and comprehensive inspection procedures. All specifications are formally documented, equipment undergoes full verification prior to shipment, and supporting documents for customs clearance and project acceptance are available upon request. Every BRTIRWD1506A is manufactured in accordance with official specifications: 6 kg payload, 1,647 mm reach, ±0.05 mm repeatability, and standardized axis motion ranges and speeds. All equipment carries CE marking, and relevant certification documents can be supplied on request.
Trusted by Manufacturers Worldwide
Welding Industrial Robot FAQ
What exactly is a RBTIC welding industrial robot package?
+
-
The standard BRTIRWD1506A welding robot includes power source, wire feeder, torch, and gas regulator - all factory-integrated and ready to run. Optional add-ons (7th-axis track, positioners, fixtures, vision) are selected to match your workpieces.
How should I confirm the final specification for my project?
+
-
Send your part drawing, material, plate thickness, joint type and target volume. Our engineers will confirm reach and accessibility, propose a configuration and, where useful, run a free welding sample test on your component.
What is the lead time?
+
-
Standard models are stocked for quick delivery. Custom welding cells equipped with 7th-axis tracks, positioners, custom fixtures or vision systems take 30–60 days based on complexity. Lead time will be stated in the quotation, and stock status can be verified prior to ordering.
Can the welding industrial robot be customized?
+
-
Yes. We offer custom configurations including tooling fixtures, positioners, vision systems, end-effector design, and programming interfaces. Complete robotic welding cells can be engineered to match your workpieces.
