Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc machine tending robot in China. With abundant experience, we warmly welcome you to buy durable cnc machine tending robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About CNC Machine Tending Robot

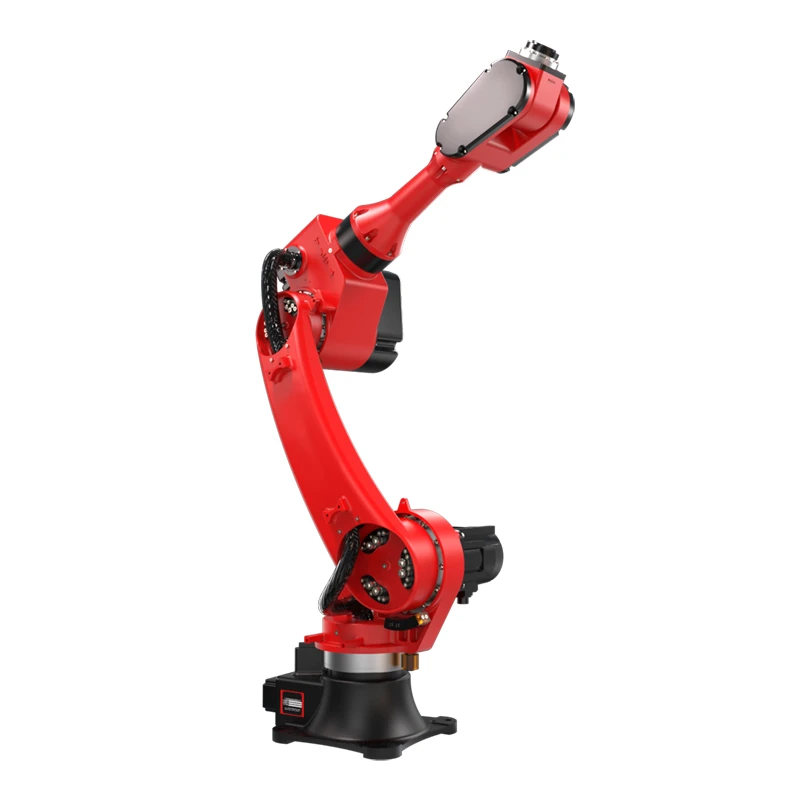

A CNC machine tending robot is an industrial robot designed for automatic workpiece picking, clamping, unloading, and transfer. It is compatible with lathes, machining centers, and other CNC equipment, efficiently replacing repetitive manual labor. Its consistent automated operation optimizes production cycles and machining consistency, reducing production costs and improving profitability.
Heavy-Duty Automatic Loading and Unloading
With a rated payload of 30 kg, this CNC machine tending robot reliably handles oversized and heavy workpieces for steel, cast, and large hardware machining. It eliminates strenuous manual handling and improves on-site operational safety.
Multi-height Station Handling Capacity
With a working reach of 2068 mm, our CNC machine robot accommodates multi-layer racks and machine stations of varying heights, enabling multi-station automatic tending. The system delivers seamless automation across loading, machining, inspection, and unloading steps, enhancing overall automation of machining lines.
Understanding CNC Machine Tending Robot Parameters
|
Model |
BRTIRUS2030A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±150° |
102°/s |
|
J2 |
-90°/+70° |
103°/s |
|
|
J3 |
-55°/+105° |
123°/s |
|
|
Wrist |
J4 |
±180° |
245°/s |
|
J5 |
±115° |
270°/s |
|
|
J6 |
±360° |
337°/s |
|
|
Arm Length |
2068mm |
||
|
Loading Ability |
30kg |
||
|
Repeatability |
±0.08mm |
||
|
Power Source |
6.11kVA |
||
|
Weight |
310kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP40 |
||
Understanding Basic Dimensions of CNC Machine Tending Robot
Why Choose CNC Machine Tending Robot
|
Comparison Item |
CNC Robot Tending Robot |
Manual Loading & Unloading |
|
Production Capacity |
Stable cycle time, capable of 24/7 continuous operation |
Output fluctuates due to operator fatigue, dependent on shift work |
|
Production Efficiency |
Fixed takt time enables standardized manufacturing |
Productivity varies with operator proficiency and physical condition |
|
Production Stability |
Free from staff turnover, consistent and predictable output |
Prone to large fluctuations caused by human factors |
|
Product Consistency |
Uniform gripping position ensures stable product quality |
Dimensional inconsistency results from varying manual operation |
|
Management Cost |
Minimizes manpower requirement and staff scheduling workload |
Ongoing expenses for staff administration, training and shift arrangement |
|
Initial Investment |
High upfront cost for robot and peripherals |
Low upfront expenditure |
|
Long-term Comprehensive Cost |
Mainly covers equipment maintenance and power consumption |
Cumulative costs include wages, training and daily management |
|
Multi-machine Linkage |
One robot serves 2–3 CNC machines |
Requires additional workers to operate multiple machine tools |
A CNC machine tending robot automates workpiece picking, loading, and unloading via standardized operation procedures to sustain consistent production takt time, suited for continuous mass production and linked multi-machine operations.
FAQ
Q1: Which industries is the CNC machine tending robot applicable to?
With a rated payload of 30 kg, the CNC machine tending robot serves heavy-duty machining and metalworking industries, including automotive parts manufacturing, mold production, heavy-duty hardware, machinery processing, and steel and casting component manufacturing. It reliably handles medium-to-large, heavy workpieces to sustain continuous loading cycles under diverse, complex machining conditions.
Q2: How about the processing quality with this CNC machine tending robot?
This CNC machine tending robot achieves positional repeatability of ±0.08 mm, ensuring consistent workpiece positioning during loading and unloading while avoiding manual positioning deviation. Reliable automatic pick-and-place minimizes clamping errors caused by manual handling, improving machining consistency and yield for mass production.
