Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of machine tending robot in China. With abundant experience, we warmly welcome you to buy durable machine tending robot in stock here from our factory. All custom made products are with high quality and competitive price.

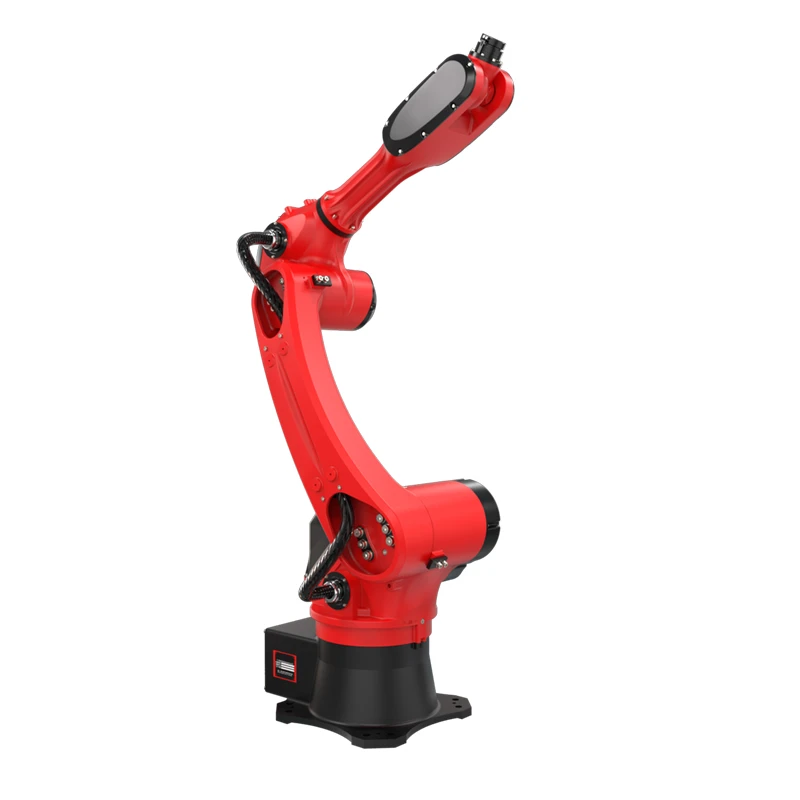

Learn About Machine Tending Robot
A machine tending robot is an industrial robot for automatic blank picking, machine feeding, finished part retrieval, and part stacking. With positional repeatability of ±0.05 mm, it delivers high precision and tight tolerances, improving part uniformity, productivity, and quality in precision component machining. It is widely deployed on automated production lines with CNC lathes and machining centers.
Application Scenarios
Automatic Tending for CNC Lathe
Automatically pick blanks, load onto chucks and unload finished goods for uninterrupted machining.
One Robot for Two CNC Machines
A single robot serves two machine tools simultaneously to cut labor cost.
Precision Automatic Workpiece Clamping
High-precision placement reduces offset and collision risks.
Understanding Machine Tending Robot Parameters
|
Model |
BRTIRUS1510A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±165° |
190°/s |
|
J2 |
-95°/+70° |
173°/s |
|
|
J3 |
-85°/+75° |
223°/s |
|
|
Wrist |
J4 |
±180° |
254°/s |
|
J5 |
±115° |
270°/s |
|
|
J6 |
±360° |
342°/s |
|
|
Arm Length |
1587mm |
||
|
Loading Ability |
10kg |
||
|
Repeatability |
±0.05mm |
||
|
Power Source |
5.06kVA |
||
|
Weight |
152kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP40 |
||

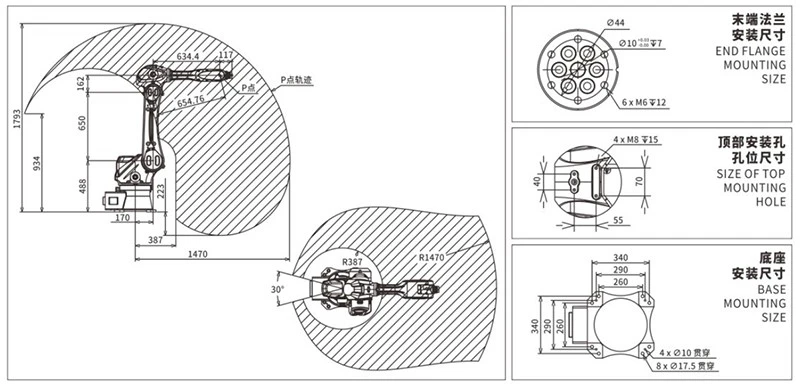

Understanding Basic Dimensions of Machine Tending Robot
Case Studies
Scenario 1: One-Robot-to-Two CNC Lathe Loading with Tray Feeding for Alloy Steel Parts
A hardware component manufacturer mass-produces alloy steel shafts, plagued by high staff turnover and labor shortages, resulting in output volatility due to human factors. This project adopts a machine tending robot together with a customized tray feeding system to connect two CNC lathes for one-robot-to-two-machine automatic loading and unloading. The robot picks alloy steel blanks from trays, matches the cycle times of both lathes to perform cyclic tending, and places finished products into designated tray slots. The one-robot-two-machine setup reduces machine idle time, improves lathe utilization, alleviates labor shortages, and enables continuous mass production of alloy steel workpieces.
Scenario 2: Automated Tending for Double-End Machining of Cylindrical Pins
A Vietnamese hardware factory manufactures cylindrical pins and shaft pins in batches. Workers must shuttle between two lathes for clamping, unloading, and workpiece flipping, which often leads to missed loads and re-clamping errors that compromise coaxial precision. A machine tending robot system, equipped with dual-station pneumatic grippers and positioning trays, links two CNC lathes for one-robot-to-two-machine automation. Following first-end machining, the robot automatically flips the pin and feeds it into the second lathe for secondary processing. Linked via I/O communication, the two machines run in staggered takt to improve equipment utilization, reduce manual intervention, and ensure stable bulk production.
FAQ
Q1: What is the price of the machine tending robot?
The quotation for the machine tending robot is calculated based on customized CNC automation solutions. The final cost depends on robot specifications, custom fixtures, positioning stations, and auxiliary equipment, as well as on-site installation, commissioning, and after-sales services. We provide customized quotes upon detailed requirements; contact us for an accurate budget.
Q2: What information is required before purchase?
To customize the CNC automation layout, customers need to supply core production parameters: workpiece dimensions and weight, required machining tolerances, machine model, production cycle, loading and unloading positions, workshop layout, gripping method, and I/O linkage compatibility. Complete data helps design a more suitable automation solution.
