Robotic Technology (GD) Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc tending robot in China. With abundant experience, we warmly welcome you to buy durable cnc tending robot in stock here from our factory. All custom made products are with high quality and competitive price.
Learn About CNC Tending Robot

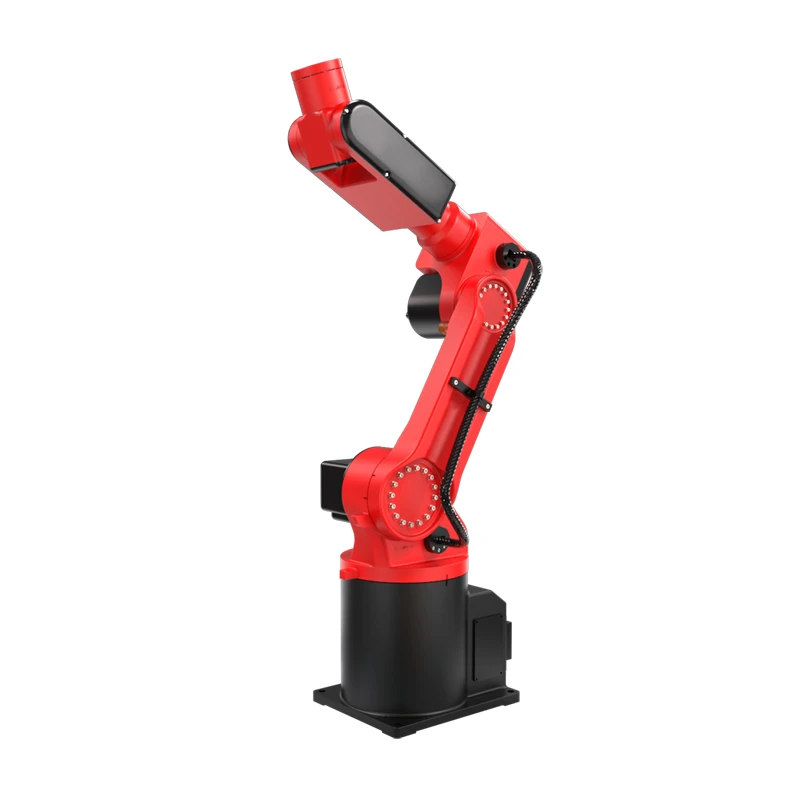

This CNC tending robot automates loading and unloading for CNC machines to replace manual labor. It isolates operators from hazards like metal chips and cutting fluid to reduce workplace injuries and improve production compliance, making it ideal for metal cutting and machining applications.
Understanding CNC Tending Robot Parameters
|
Model |
BRTIRUS0805A |
||
|
Item |
Range |
Max.Speed |
|
|
Arm |
J1 |
±170° |
237°/s |
|
J2 |
-98°/+80° |
267°/s |
|
|
J3 |
-80°/+95° |
370°/s |
|
|
Wrist |
J4 |
±180° |
337°/s |
|
J5 |
±120° |
600°/s |
|
|
J6 |
±360° |
588°/s |
|
|
Arm Length |
990mm |
||
|
Loading Ability |
5kg |
||
|
Repeatability |
±0.05mm |
||
|
Power Source |
3.67kVA |
||
|
Weight |
About 53kg |
||
|
Control System |
HC Control System |
||
|
Power Supply |
220V |
||
|
Protection Grade |
IP40 |
||

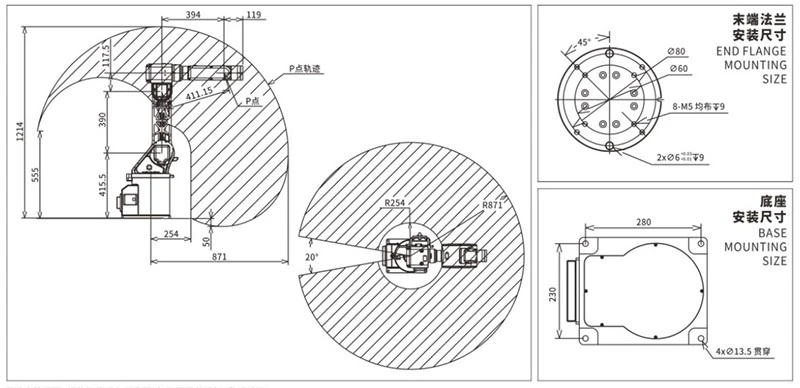

Understanding Basic Dimensions of CNC Tending Robot
Case Studies
Scenario 1: Automatic Loading & Unloading for Bearing Shaft Turning
A European component manufacturer mass-produces bearing connecting shafts. Oil-soaked workpieces tend to slip during manual clamping, lowering loading efficiency and posing a risk of dropping. The solution features a CNC tending robot with positional repeatability of ±0.03 mm to enhance loading stability. Fitted with custom anti-slip grippers, the robot picks raw shafts from material trays, reliably feeds them into lathe chucks, and unloads finished parts after machining. Synchronized with the lathe cycle, it eliminates machine idle time and enables uninterrupted mass production, boosting lathe utilization.
Scenario 2: Automatic Loading and Unloading for Aluminum Alloy Gear Machining
A Southeast Asian precision hardware factory mass-produces aluminum alloy gears. Hot machined workpieces pose burn hazards to manual operators. The solution deploys two CNC tending robots paired with two processing machines, along with dual-station fixtures, for fully automatic gear loading and unloading. The robots pick gear blanks from trays, load them into machine tools, remove hot finished components, load new blanks, and place finished gears onto conveyor belts for subsequent processes. By replacing manual handling, the system avoids burn injuries from hot workpieces and supports continuous mass production of aluminum gears.
Leading Intelligent Manufacturing from China to the World
RBTIC delivers customized robotic solutions in partnership with global manufacturers to explore the automated future.
